This versatile wall light is available with a variety of faceplate and electrical box options to maximize design flexibility in a range of applications.

The SL-3 Model fixture offers the following options:

Faceplate Options	Electrical Box options	Image
BV-Bevel CV-Curve FT-Flat RD-Round	1- Gang Vertical

Faceplate Options

Electrical Box options


BV-Bevel

CV-Curve

FT-Flat

RD-Round

1- Gang Vertical

The SL-5 Model fixture offers the following options:

Faceplate Options	Electrical Box options	Image
FT-Flat	1-Gang Horizontal
CV-Curve	1-Gang/1-Gang 4"

NOTE: The SL-5 faceplate will overlap the gang box with different surrounding measurements. Specific dimensions of each of the SL-5 faceplates inside gang boxes are available to ensure proper installation. See links below.

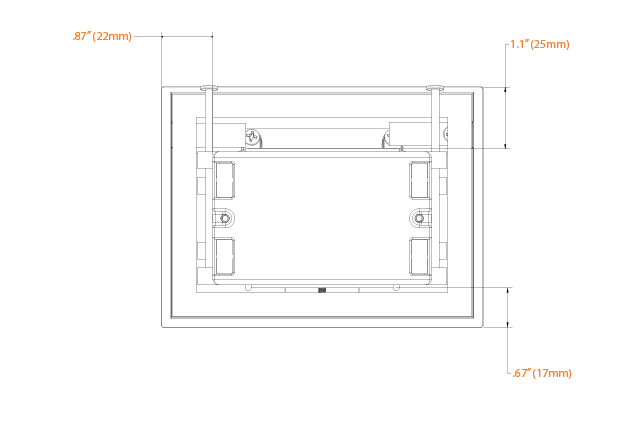

SL-5 Curve Faceplate 1- Gang Box Dimensions

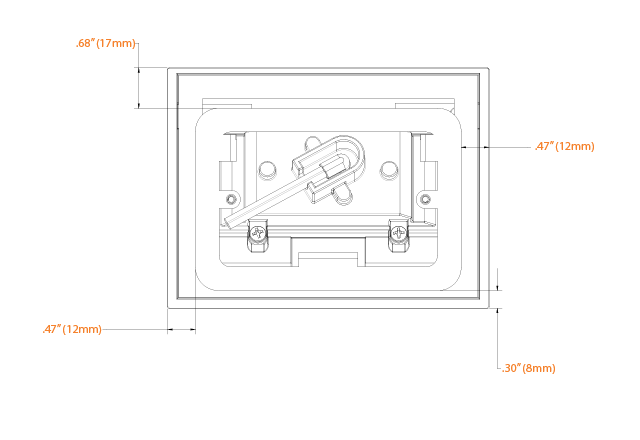

SL-5 Curve Faceplate Bracket Dimensions

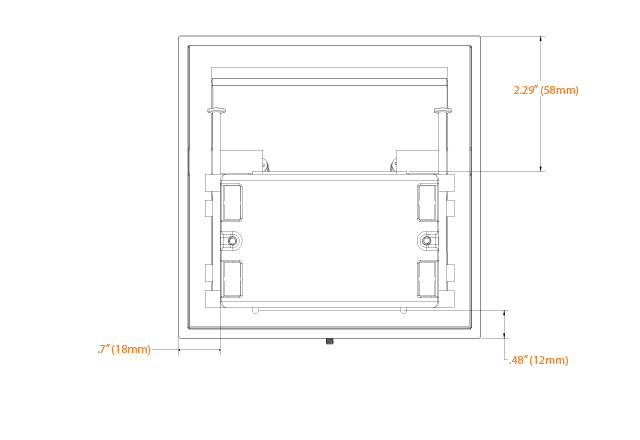

SL-5 Flat Faceplate 1- Gang Box Dimensions

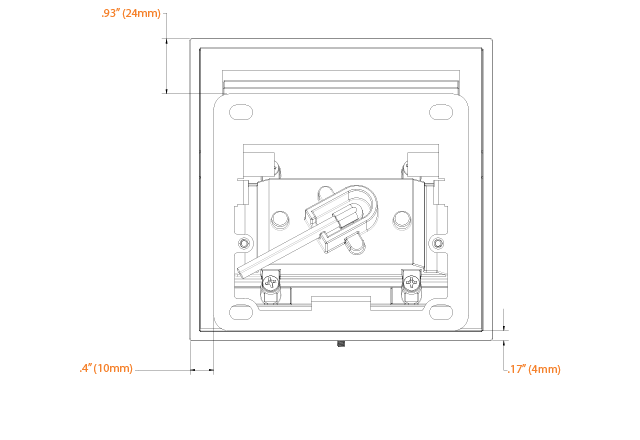

SL-5 Flat Faceplate Bracket Dimensions

Installation Steps

FAQ, Installation, Programming

Step 1

Change color filter by removing and replacing existing components (optional).

Step 2

When using the SL-3 fixture, mount the bracket to the installed junction box (1-gang box) or mounting surface. When using the SL-5 fixture, mount the bracket to the installed junction box (1-gang box/2-gang box) or mounting surface. If mounting the SL-5 to a single junction box, the top tab of the metal bracket will have to be snapped off. Run the wiring through the mounting bracket.
