Luxor

Luxor

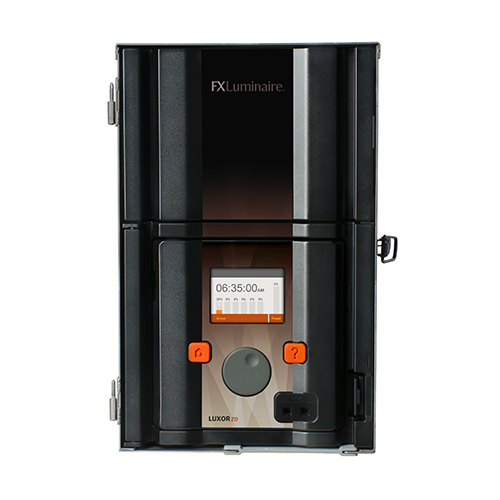

Lighting Controller
Models 300 Watt
Material Galvanized Steel and Stainless Steel

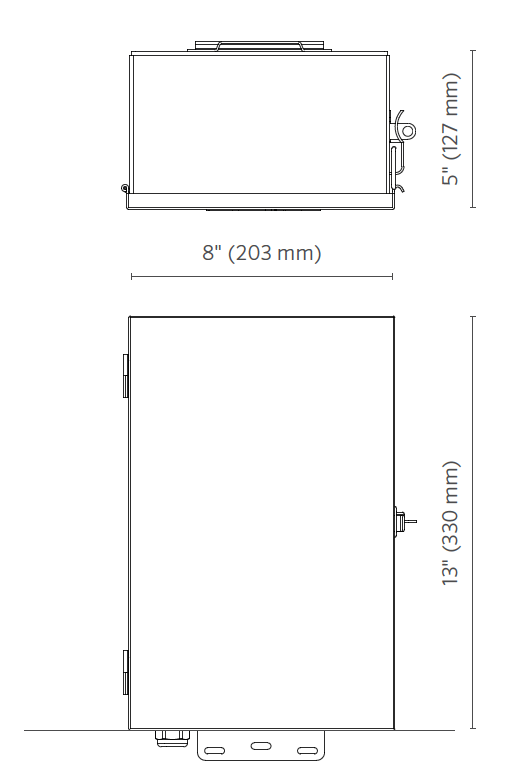

Depth 5" (127 mm)
Width 8'' (203 mm)
Height 13" (330 mm)
Finishes

Overview

Lighting control with zoning, dimming, and RGBW color creation capabilities, plus optional Wi-Fi control using Luxor® technology.

Quick Facts
  • Zone control: Up to 250 individual lighting groups of fixtures
  • Color control: Create 30,000 colors per zone
  • Scene/Theme creation: Up to 40 custom lighting themes
  • Wireless control: Optional iOS® and Android™ app
  • Dimming control: Adjust the intensities from 0-100%
  • Astronomical timing
  • Compatible with FX Luminaire Designer Series LED fixtures
  • Event-based scheduling
  • Calendar-based programming
  • 304 stainless steel and powdercoated galvanized construction. UL-1838, UL-379 compliant.

Configure Product

Select from the options below to configure this product, then add it to your My List.

Controller

LSAT

LUX

Wattage

300

300 Watts

Compliance

EU

230 V, CE Certified, 300 W Only

[Default]

North America (UL Listed)

E

International (CE Certified)

Finish

Matte Gray

Matte Grey (M)

Stainless Steel

Stainless Steel (SS)

Product Configuration

Clear Selection
Luxor
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power
LUMAKEY

LumaKey™ Utility

LUMA-KEY

The handheld LumaKey Utility with ActivAssign® Technology delivers faster wireless outdoor lighting
Learn more

Luxor Wi-Fi Module

WIFIMOD2

Controller Mount - Luxor Wi-Fi Module
Learn more

Luxor Cube - Low-Voltage

LCM-LV

Adds zoning and dimming capabilities to other brands lighting fixtures and outdoor elements
Learn more

LUXOR 2.0, EXT. WIFI MODULE

WIFIMOD2RMT

Remote Mount - Luxor Wi-Fi Module, 10 ft. lead
Learn more

Luxor Wireless Linking Module

LINK-MOD

The Luxor Wireless Linking Module provides an easy and reliable method for expanding Luxor Linking
Learn more

Luxor Cube - Line-voltage

LCM-HV

With the Luxor CUBE, the Luxor controller can now zone and dim other brands of low voltage and line
Learn more

Luxor Cube - Relay, 0-10V dimming

LCM-RLY010V

The relay and 0–10 V CUBE adds zoning and dimming capabilities to any product with a relay input or
Learn more

Surge Protection Module

SURGE-MOD

The SURGE MOD is designed to provide two additional layers of surge protection to any low-voltage
Learn more

Luxor Wireless Linking Module

LINK-MOD-E

The Luxor Wireless Linking Module provides an easy and reliable method for expanding Luxor Linking
Learn more

Specifications

 Download Spec Sheet

Firmware



All Firmware Notes

Luxor Controller

Luxor Controller

ComponentFirmware RevisionFile Name(s)
Facepack (All three efi files required)v1.13L2FP0113.efi, L2BL0125.efi, L2FL0113.efi
Chassisv0.24L2CH0024.efi
Wifi Modulev1.01L2WA0101.efi
Wireless Linking Module (LINKMOD)v1.01L2WL0101.efi

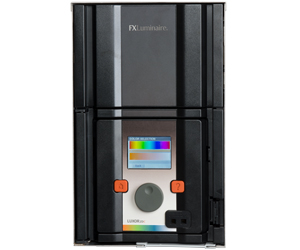

ZDC board
ZDC
Non-color board
non-color
Non-color board
non-color

LED Boards

ComponentFirmware RevisionFile Name(s)
Color (ZDC)v0.11L2FC0011.efi
Monochrome (non-color)v0.11L2FM0011.efi
Additional Certifications

CE, RCM, RoHS

Ambient Operating Temperature

0°F to 140°F (-18°C to 60°C)

Communication Specification

Preinstalled 8" (203 mm) RJ-11 communication cable between facepack (i.e., user interface) and chassis (i.e., power unit).

Country of Origin

Made In China, Made In Malaysia

Description
The Luxor Controller offers zoning, dimming, and RGBW color-changing capabilities, plus optional Wi-Fi control.
Environment

Outdoor

Finish Specification

Standard stainless steel finish and matte gray powder coat.

Fixture Assignment Specification

Assign fixtures to zone number manually via assignment ports on facepack or wirelessly via the Light Assignment Module (LAM). The LAM and network accessories must be specified separately.

Hardware

Two pan-head machined mounting screws with plastic anchors. Stainless steel mounting brackets attached to transformer box.

Installation Requirements

Designed for installation on a vertical surface in upright position only. Transformer must be in a free airspace; do not install in a small sealed enclosure or direct bury.

International Compliance

Compliant per IEC 61347-1 and IEC-61347-2-11

Ingress Protection (IP) Testing

IP54

Luxor Linking Specification

Luxor Linking offers an easy way to expand a multi-controller site with a single point of control. With hardwired Luxor Linking, add up to nine satellite units, for a total of 10 units. The maximum hardwired (Cat 5/5e/6) connection between the primary and farthest satellite controller is 3,000' (0.9 km). With wireless Luxor Linking, add 10+ satellite units connected to the primary controller by LoRa radio up to 3,000' (0.9 km).

Manufacturing

ISO 9001:2015 certified facility

Materials

304 stainless steel and powder coated galvanized steel outer box and latch.

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Programming Specification

Create up to 250 independently adjustable lighting zones. Control each zone independently with separate on/off times, various intensities (0–100% in 1% increments).

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Warranty

10-year limited warranty

Weight

300 W: 23.1 lb (10.5 kg), 300 W (CE): 19.1 lb (8.7 kg)

Wi-Fi Connectivity Specification

Connect to Wi-Fi or a network router with the Luxor Wi-Fi Module accessory or the included LAN Module.

Wireless App Control Specification

Network module required. The Luxor App is available for iOS and Android devices. Control via app available for on-site or remote adjustability.

Wiring

Heavy-gauge, grounded, water-resistant power cord with integrally molded plug; 5' (1.5 m) length. Standard lowvoltage lighting wire required (e.g., 12-2, 10-2, etc./2.05 mm, 2.58 mm, etc.) between controller and fixtures. No additional communication wire is required.

Videos

Replacing a PowerBoard® LED Light Engine

In this video, you’ll learn how to upgrade or replace an FX Luminaire PowerBoard LED Light Engine. Whether you’re upgrading to the newest generation or

Troubleshooting the Luxor® Control System (Overloads & Wireless Communication Issues)

In this video, we will go over the most common troubleshooting issues that may occur with a Luxor transformer. (7 of 8) Playlist: https://www.youtube

Testing the Luxor® System in Manual Mode

The easiest way to turn themes on or off is with the Luxor App. If you don’t have the app installed and you’re at the controller, follow these steps. (6

Configuring the Luxor® Control System (Controller Settings & Wireless Communication)

The Luxor Controller manages your entire lighting system — from group control and color adjustment to custom scenes and lighting schedules. With an

Updating Luxor® Control System Firmware

Let’s walk through the steps to determine your transformer location and install the Luxor Controller. When choosing a location for your controller, look

Mounting the Luxor® Controller

Updating the firmware on your Luxor System ensures your system runs efficiently with the latest features and improvements. (2 of 8) Playlist: https:/

Luxor App: Naming Colors

Naming colors in the Luxor app creates simpler organization, faster identification, and easier programming.

Luxor Controller: Start to Finish Assignment

In this video, you'll learn how to program your Luxor fixtures into groups, create themes, and then organize your themes into an automated schedule.

All Product Videos
