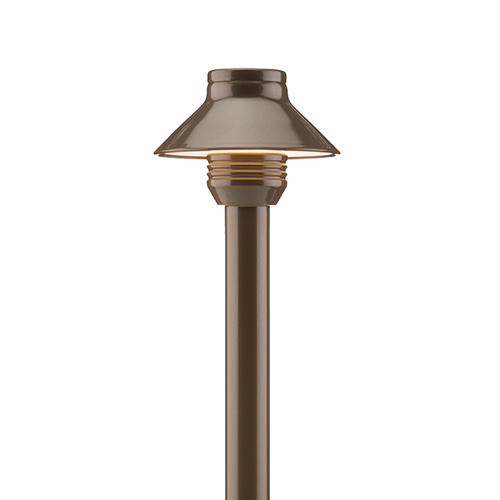

SP-A

Product Tabs

Overview

As an aluminum version of its sister fixture - the copper SP - the SP-A is designed for more budget-conscious projects. Like its predecessor, the SP-A is designed for minimalist themes or compact spaces, where larger path lights just won't work.

Quick Facts

Spun, machined, and extruded aluminum
Superior outdoor polyester TGIC powder coat
G4 bi-pin lamp
Input voltage: 10-15V
Compatible with Luxor® technology (Cubes only)
Phase dimmable

Videos

Copy Link

Specs

Copy Link

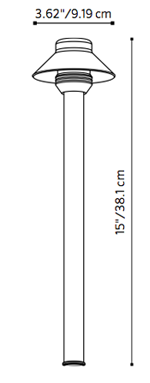

SP Dimensions

Note: Example model shown has a 12" riser.

SPA Spec Chart

Output	NL (No Lamp)	LED20W
Total Lumens		35
Input Voltage	10 to 15v	11 to 15v
Power Consumption (VA)		1.3
Lumens per Watt (Efficacy)		30
CRI (Ra)		81
Dimming	PWM, Phase**	Phase*
Luxor Compatibility
ZD Option		Use Luxor Cube (LCM-LV)
Minimum Rated Life (Hrs, L70)		33,000 Hrs

**For optimal performance, use trailing edge phase cut dimmer.

SP Path Light - Recommended Spacing

	LED20W
Footcandles (Lux)	12" Riser	18" Riser	24" Riser
0.1 fc (1.1 lx)	7.4' (2.3 m)	8.8' (2.7 m)	9.6' (2.9 m)
0.3 fc (3.2 lx)	5.4' (1.6 m)	5.8' (1.8 m)	5.8' (1.8 m)
0.5 fc (5.4 lx)	4.6' (1.4 m)	4.6' (1.4 m)	4.6' (1.4 m)
0.8 fc (8.6 lx)	3.4' (1.0 m)	3.6' (1.1 m)	3.6' (1.1 m)
1.0 fc (10.8 lx)	3.2' (1.0 m)	3.2' (1.0 m)	3.2' (1.0 m)

0.1 fc (1.1 lx) minimum spacing recommended for residential projects
0.3 fc (3.2 lx) minimum spacing recommended for commercial projects

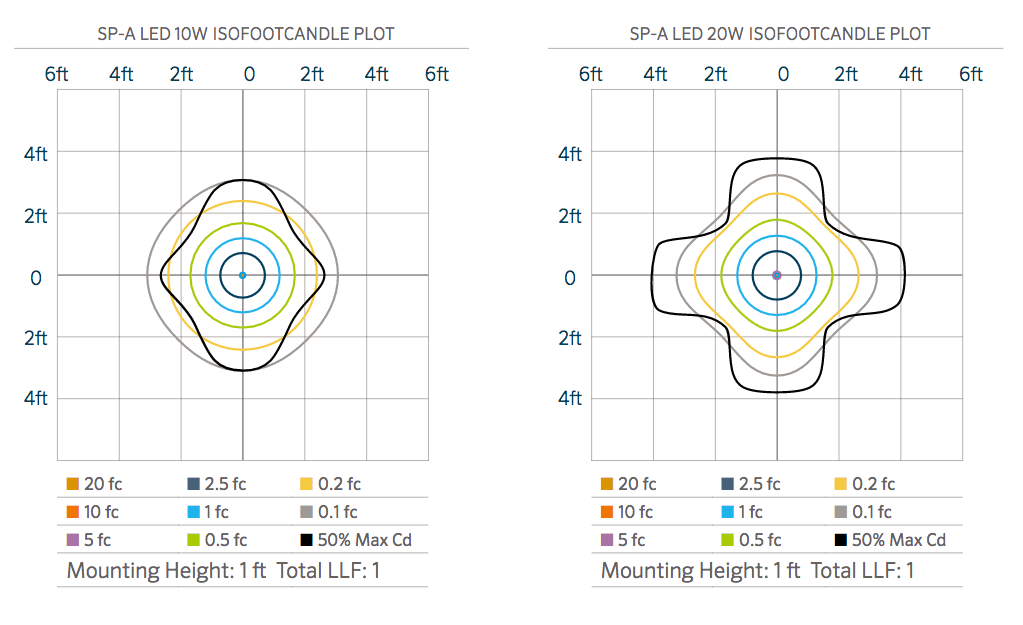

SP-A Photometrics with G4 LED Replacement

NOTE: Beam angle is defined as two times the vertical angle at which the intensity is 50% of the maximum. It is calculated using LM-79 method for SSL Luminaires.
