Garden™ TD

LED Path Light
LEDs 1, 3, 6, 9
Lamp SCB
Material Premium Copper
Diameter 5" (127 mm)
Height 17.2'' (437 mm)
Finishes

Overview

Elegant lines, solid construction by day or night the simple lines of the TD add elegance and function to any fine residence. Constructed of solid brass and copper to strict tolerances, with the clean classic design of a country home, this pathway light transcends momentary style trends.

Quick Facts
  • Premium, corrosion-resistant copper and brass construction protects internal and external elements of the fixture
  • Decorative style for directional path lighting
  • Available in static color temperature, wildlife-friendly, and dynamic RGBW color-changing options

Configure Product

Select from the options below to configure this product, then add it to your My List.

Lighting Engine

Which lighting engine is right for you?

Powerboard Integrated LED

SCB

Luxor Control

Which control is right for you?

ZD

Zone/Dim with Luxor

ZDC

Zone/Dim/Color with Luxor (Large Round 3LED)

Power

What does LED output mean?

3LED

4.5 VA

6LED

9.3 VA

9LED

12.2 VA

[Default]

Default ZDC Option 6.0W/7.2VA

Lamp

12

12W Incandescent

18

18W Incandescent

25

25W Incandescent

LED Color

Which color option is right for you?
RBGW

[Default]

Default ZDC option 11.0 VA

Riser

[Default]

No riser

XT

Extra Tall

Finish

Antique Bronze

Antique Bronze (AB)

Bronze Metallic

Bronze Metallic (BZ)

Black

Black (FB)

Sedona Brown

Sedona Brown (SB)

Desert Granite

Desert Granite (DG)

Weathered Iron

Weathered Iron (WI)

White

Flat White (FW)

Silver

Silver (SV)

Natural Copper

Natural Copper (CU)

Product Configuration

Clear Selection

Included Parts & Accessories

  • Large Slot Spike
Garden™ TD
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power
Image of the Step-Down Transformer

Plug-In Transformer, 6 W

MT-6W

6 W, Plug-In Transformer, 12VAC
Learn more

Step-Down Transformer, UV (120/277 V to 12 V)

ST-UV

Step down transformer (120V to 12V) Input voltage: 120V-240V Output: 12V Wattage: 30W Non-dimmable
Learn more

Luxor Cube - Low-Voltage

LCM-LV

Adds zoning and dimming capabilities to other brands lighting fixtures and outdoor elements
Learn more

Surge Protection Module

SURGE-MOD

The SURGE MOD is designed to provide two additional layers of surge protection to any low-voltage
Learn more
Mounting
Customizable

Ground Mount with ½" Thread

GM-XX*

Tamper-resistant, aluminum ground mount accessory with ½" thread. Used for positioning up light and
Learn more
Customizable
VB-050

VersaBox® Mount with ½" Thread

VB-050-XX*

Brass junction box with ½" thread. Includes setscrew for adjusting fixture angle and features a
Learn more
Customizable
MJB050BZ_001_RT

Mini J-Box for ½" Thread

MJB-050-XX*

This expanded junction box provides more space to hold extra wire and connectors. An optional snap
Learn more

Super Slot Spike

753900

A slotted spike that secures fixtures firmly into the ground. Side wire insertion slot makes
Learn more

Long Slot Spike

250015840000

Made of recycled regrind, this spike secures fixtures firmly into the ground. Side wire insertion
Learn more

Three-Prong Spike

250020020000

Three spikes offer extra stability for securing top-heavy fixtures firmly into the ground
Learn more

Variable Height Riser for Up Lights

VHR-UL

Adjustable plastic riser allows you to change the height of an FX Luminaire up light up to 7.0" (178
Learn more
Customizable

Super J-Box Spike

SJ-XX*

A long slot spike that secures fixtures firmly into the ground. Includes a built-in junction box
Learn more
Customizable

1.0" (25 mm) Copper Riser for GT Path Light

YY*-R-GT-XX*

Durable 1.0" (25 mm) copper riser with ½" male/female threads allows you to raise the height of an
Learn more

ProAim® Ratcheting Spike

PARS

Spike with built-in ratcheting feature allows you to angle the light in any direction, then tighten
Learn more
Replacement Lamps

Specifications

 Download Spec Sheet

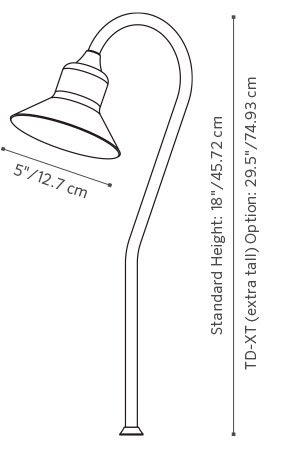

TD Dimensions
Number of LEDs 1 3 (ZDC) 6 9
Halogen Lumen
Output Equivalent		 10 Watt 20 Watt 35 Watt 50 Watt
Useful LED Life (L70) 50,000 hrs avg 50,000 hrs avg 50,000 hrs avg 50,000 hrs avg
Input Voltage 10 to 15V 10 to 15V 10 to 15V 10 to 15V
VA Total
(Use this number to
size the transformer)		 2.4 4.5 (11) 13.5 13.5
Watts Used 2.0 4.2 (9.1) 10.1 11.2
Lumens per Watt
(Efficacy)		 38 55 51 54
Max Lumens 75 218 404 530
CRI (Ra) 83 80 81 80
CCT
Amber Filter 2700K 2700K
(ZDC: N/A)		 2700K 2700K
Frosted Filter 3900K 3900K
(ZDC: N/A)		 3900K 3900K




Spacing for minimum footcandle (fc) illumination on level ground:



Note: 1fc for commercial projects / .3fc for residential projects


Footcandles:
DistanceTD-12TD-18
4'1.21.7
6'.27.53
8'.08.53
10'.15.27
12'.08.18
14'.03.09
16'.01.03
18' .01
For conversion to lumens, multiply footcandles x 10.
Additional Certifications

NOM UL 1838

Ambient Operating Temperature

0°F to 140°F (-18°C to 60°C)

Control Description

ZD or ZDC utilizes Luxor technology to zone light fixtures in up to 250 groups, dim each group in 1% increments between 0 and 100%, or change to one of 30,000 colors with RGBW LEDs. Add the Luxor Cube to this fixture to add zoning and dimming capabilities with eihter Luxor controller.

Country of Origin

Made In Mexico

CSA

CSA C22.2 NO. 250.7

Description
Precision milled from copper and brass for elegance and function, these classic path lights complement a wide range of landscape and architectural styles to outlast any trend.
EMC - CE

EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547

Environment

Outdoor

FCC

FCC CFR Part 15 Subpart B

Finish Specification

Two-layer protection of sulfuric acid anodization and polyester TGIC powder coat, providing superior outdoor weathering in all conditions. Tested to ASTM standards.

Hardware

Includes ABS long slotted spike for ground mounting.

HTS Code
Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

International Compliance requirements

Compliant per IEC 60598-1 and IEC 60598-2-7 when used with ground mount ("GMXX") accessory, or alternate mount greater than or equal to IP65.

Ingress Protection (IP) Testing

IP64

ISED

ICES-005

Lamp Specification

G4 lamp base. Preinstalled T3 LED lamp option with G4 base offers a warm 2,700K color temperature with a minimum rated life (L70) 33,000 hours.

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

LVD - CE

EN 60598-1,EN 60598-2-4

Materials

Die-cast aluminum A380 housing, top/shade and riser.

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Wiring

Socket contains MoistureBlock™ technology, preventing moisture from wicking up into sealed areas of the fixture.
