Exa™ XN-70

Grande In-Grade
LEDs H1, ZDC
Material Stainless Steel
Faceplate 7.6" (192 mm)
Fixture Height 5.3" (135 mm)
Sleeve Height 10.0" (259 mm)
Lead 10' (3 m)
Finishes

Overview

The new Exa Collection offers high-output performance with low-voltage simplicity. With stainless steel construction plus IP68 and drive-over ratings, the modern Exa In-Grade provides light output up to 1,000 lumens. It also offers beam angle and color temperature options that are compatible with Luxor® Technology. The internal rotation and tilt adjustability with a fully recessed design results in a clean, easy installation.

Quick Facts
  • Includes field-servicable beam angle lenses from Very Narrow to Wide Flood
  • Driver on Board Technology layout for compact design and fewer components
  • Built-in Luxor® Technology enables powerline zoning, smooth dimming, and RGBW color-changing with the Luxor Controller
  • Available in static color and dynamic RGBW color-changing options
  • Available in a wide range of powder-coated finishes to suit all exterior designs and preferences
  • Custom recessed installation kit included

Configure Product

Select from the options below to configure this product, then add it to your My List.

Luxor Control

Which control is right for you?

ZD

Zone/Dim with Luxor

ZDC

Zone/Dim/Color with Luxor (Round 6 LED)

Power

What does LED output mean?

[Default]

Default ZDC Option 6.0W/7.2VA

H1

23.0 VA

LED Color

Which color option is right for you?
RBGW

[Default]

Default ZDC option 11.0 VA

Warm

W

Warm (2700K)

Soft

S

Soft (3000K)

Optic

SP

Spot (20°)

FL

Flood (40°)

WF

Wide Flood (60°)

Style

RG

Ring

Finish

Bronze Metallic

Bronze Metallic (BZ)

Black

Black (FB)

Sedona Brown

Sedona Brown (SB)

Desert Granite

Desert Granite (DG)

Weathered Iron

Weathered Iron (WI)

White

Flat White (FW)

Silver

Silver (SV)

Stainless Steel

Stainless Steel (SS)

Product Configuration

Clear Selection

Included Parts & Accessories

  • Hex Key
  • In-Ground Construction Sleeve
Exa™ XN-70
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power

Step-Down Transformer, UV (120/277 V to 12 V)

ST-UV

Step down transformer (120V to 12V) Input voltage: 120V-240V Output: 12V Wattage: 30W Non-dimmable
Learn more

Step-Down Transformer (120V to 12V)

ST-HV

Step down transformer (120V to 12V) Input voltage: 120V-240V Output: 12V Wattage: 16W CE approved
Learn more

Step-Down Transformer, Dimmable (120 V to 12 V)

ST-120-DIM

Step down transformer (120 V to 12 V) Input voltage: 120 V Output: 12 V Wattage: 60 W Dimmable
Learn more
Step-Down Transformer

Mini Plug-In Transformer, 30 W

MT-30W

30W, Plug-In transformer, 12VAC
Learn more

Luxor Cube - Low-Voltage

LCM-LV

Adds zoning and dimming capabilities to other brands lighting fixtures and outdoor elements
Learn more
DIM-LV

Low-Voltage Dimmer

DIM-LV

The Low-Voltage Dimmer provides in-line dimming control for any low-voltage fixture. It’s the ideal
Learn more

Surge Protection Module

SURGE-MOD

The SURGE MOD is designed to provide two additional layers of surge protection to any low-voltage
Learn more
Mounting

MKKT

Mounting Kit for KT or Exa In-Grade Lights Mounting kit for the FX Luminaire KT and Exa In-Grade
Learn more
Splicing

Brass Lug Wire Connectors, 2-pack

WCHSBS2

Protects fixtures from damage by ensuring a secure wire connection. Includes two brass lug
Learn more

Brass Lug Wire Connectors, 50-item Bulk Pack

WCHSBS50

Protects fixtures from damage by ensuring a secure wire connection. Includes 50 brass lug connectors
Learn more

Heat Shrink Wire Connectors, 20-pack, Small

WCHSSM20

Adhesive-filled heat shrink tubes protect fixtures from damage and optimize system performance by
Learn more

Heat Shrink Wire Connectors, 20-pack, Medium

WCHSMD20

Adhesive-filled heat shrink tubes protect fixtures from damage and optimize system performance by
Learn more
Glare

Hex Baffle for MR-16 LED Lamps

250015260000

Shield used to increase glare control with up or down lights. Ideal for fixtures installed near
Learn more
Lenses

Frosted Lens for MR-16 LED Lamps

250015170000

A 2.0" (50 mm) frosted lens that diffuses the light to produce a soft wash look or maximize blending
Learn more

Solite Spread Lens for MR-16 LED Lamps

250015240000

A 2.0" (50 mm) pebbled lens that slightly minimizes the light’s intensity while softening the edges
Learn more

Linear Spread Lens for MR-16 LED Lamps

250013550000

A 2.0" (50 mm) lens featuring ridges that spread the light in a linear direction. The result is a
Learn more

Dichroic Lens for MR-16 LED Lamps, Light Green

250015180000

A 2.0" (50 mm) glass lens that creates a soft green light output. Includes UV protection to prevent
Learn more

Dichroic Lens for MR-16 LED Lamps, Blue

250015190000

A 2.0" (50 mm) glass lens that creates a 5,200K cool blue light output. Includes UV protection to
Learn more

Dichroic Lens for MR-16 LED Lamps, Red

250015220000

A 2.0" (50 mm) glass lens that creates a saturated red light output. Includes UV protection to
Learn more

Specifications

 Download Spec Sheet

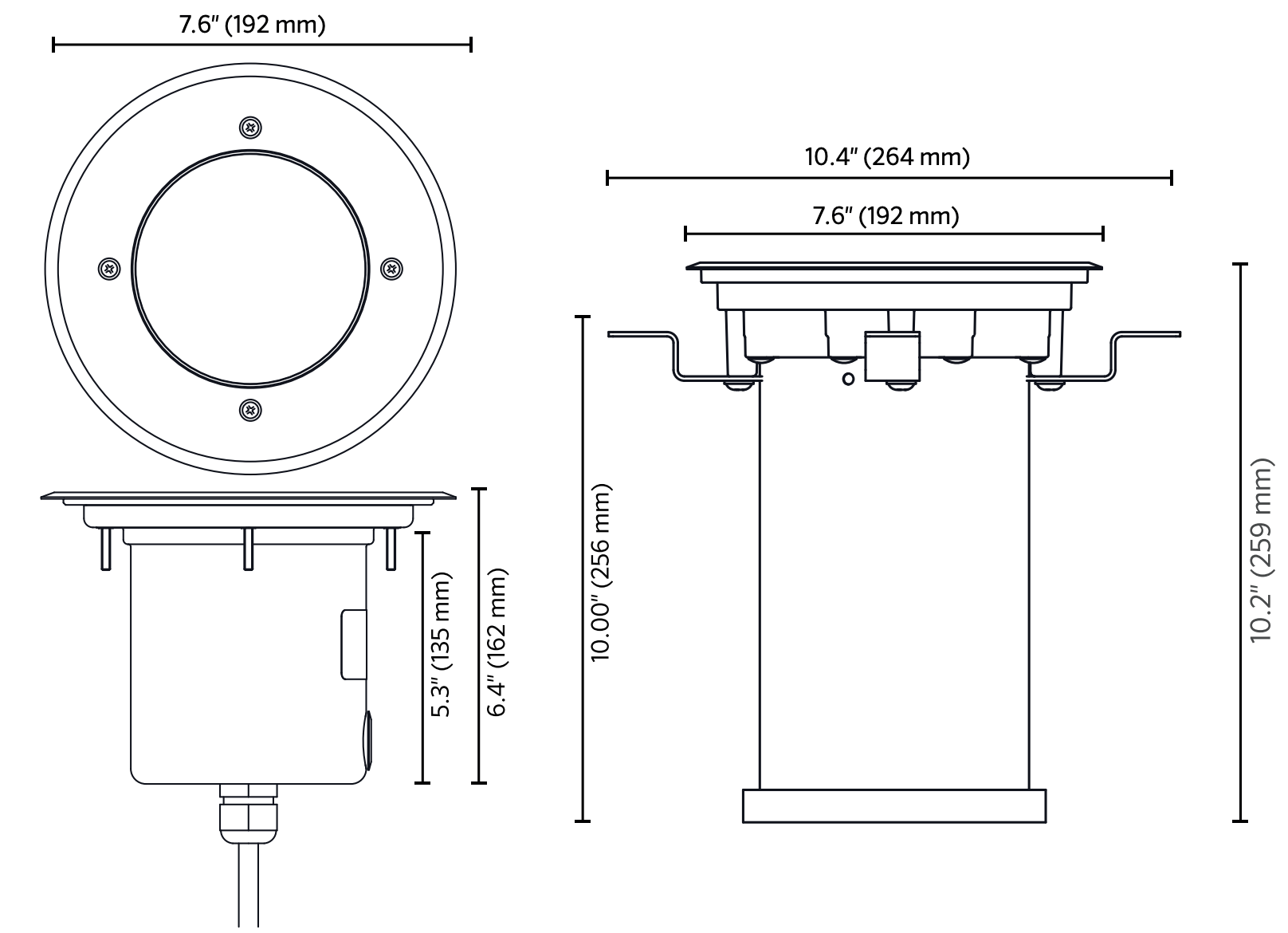

XN-70 Dimensions

Output H1* ZDC**
Total Lumens (lm) 1,030 450-1,000
Input Voltage 10 to 15 V 11 to 15 V
Input Power (W) 18.0 21.0
Power Consumption (VA) 23.0 25.0
Efficacy (Lumens/Watt) 58 47
Color Rendering Index (CRI) 84 -
Maximum Candela (cd)
    Spot (20) 3,042 -
    Flood (40) 1,788 1,949
    Wide Flood (60) 861 -
Luxor Compatibility
    Default Zoning Zoning
    ZD Option Zoning/Dimming Zoning/Dimming
    ZDC Option - Zoning/Dimming/Color
Minimum Rated Life (L70) 72,000 hrs 55,000 hrs

*Measured using the 3,000K CCT option with a Flood (40°) beam angle. See .ies files for additional photometry data.

**Measured with all four colors turned on at 100%

Additional Certifications

CB Scheme, CE, RoHS, RCM, NOM

Country of Origin

Made In Mexico

Description
This compact in-grade offers internal rotation and tilt adjustability for highly efficient light delivery. With IP68 and drive-over ratings, the XN-70 provides light output up to 1,000 lm
EMC - CE

EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547

Environment

Outdoor

FCC

FCC CFR Part 15 Subpart B

HTS Code
Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

Ingress Protection (IP) Testing

IP65, IP67

ISED

ICES-005

Lamp Specification

Integrated module with Cree LEDs. Gold-plated connectors and potted driver for maximum reliability and corrosion resistance. Proprietary onboard intelligent driver uses firmware-controlled temperature regulation, maximizing LED life.

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

LVD - CE

EN 60598-1,EN60598-2-13

Materials

316 marine-grade stainless steel, die-cast aluminum, and stainless steel hardware.

Optics

Color temperature and beam angle defined by part number. Both components are serviceable with parts ordered separately.

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Documents

Select Type

  • All Documents
  • Specifications
  • Installation
  • Marketing
  • Photometrics
  • Replacement Parts
  • Software
Document Name Actions
Exa Collection Brochure
Download
Exa Collection Flyer
Download
FX Luminaire Collections Flyer
Download
XN-70 Core Drilling Guide
Download
XN-70 IES Photometrics
Download
Xn-70 Install Note
Download
XN-70 Replacement Parts
Download
