Modern™ MP-30 and MP-31

LEDs 1, ZDC
Material Aluminum
Depth 7.6'' (194 mm)
Width 1.5" (38 mm)
Height 20.2" (513 mm)
Finishes

Overview

As a smaller version of FX Luminaire’s popular MP-40 Path Light, the MP-30 and MP-31 combine contemporary style with anodized aluminum construction to deliver long-lasting illumination and durability in a compact package. Elevate your outdoor space with the perfect balance of powerful performance and high-end design.



Quick Facts
  • Crafted from sturdy die-cast and extruded aluminum, ensuring resilience and longevity
  • Extra-long, standard conduit with stabilizer enables ground mounting in any environment
  • Driver on Board Technology layout for compact design and fewer components
  • Built-in Luxor® Technology enables powerline zoning, smooth dimming, and RGBW color-changing with the Luxor Controller
  • Available in static color temperature, wildlife-friendly, and dynamic RGBW color-changing options
  • Available in a wide range of powder-coated finishes to suit all exterior designs and preferences

Configure Product

Select from the options below to configure this product, then add it to your My List.

Lighting Engine

Which lighting engine is right for you?

Powerboard Integrated LED

G4

Luxor Control

Which control is right for you?

[Default]

On/Off | Phase Dimmable | Zone with Luxor

ZD

Zone/Dim with Luxor

ZDC

Zone/Dim/Color with Luxor

Power

What does LED output mean?

1LED

2.4 VA

[Default]

No Power Selection

Lamp

E2

1.3 VA G4 LED Lamp (Eco Lamp Series)

NL

Lamp Not Included

LED Color

Which color option is right for you?
RBGW

[Default]

Default ZDC option 11.0 VA

Warm

W

Warm (2700K)

Soft

S

Soft (3000K)

Turtle icon

T

Wildlife-Friendly (585 to 595 nm)

Optic

[Default]

NL Lamp

Compliance

UL Listed

[Default]

North America (UL Listed)

CE Certified

E

International (CE Certified)

Finish

Bronze Metallic

Bronze Metallic (BZ)

Black

Black (FB)

Sedona Brown

Sedona Brown (SB)

Desert Granite

Desert Granite (DG)

Weathered Iron

Weathered Iron (WI)

White

Flat White (FW)

Silver

Silver (SV)

Product Configuration

Clear Selection

Included Parts & Accessories

  • 3/4'' Conduit
  • Conduit Stabilizer
  • Hex Key
Modern™ MP-30 and MP-31
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power

Step-Down Transformer, UV (120/277 V to 12 V)

ST-UV

Step down transformer (120V to 12V) Input voltage: 120V-240V Output: 12V Wattage: 30W Non-dimmable
Learn more

Step-Down Transformer (120V to 12V)

ST-HV

Step down transformer (120V to 12V) Input voltage: 120V-240V Output: 12V Wattage: 16W CE approved
Learn more

Step-Down Transformer, Dimmable (120 V to 12 V)

ST-120-DIM

Step down transformer (120 V to 12 V) Input voltage: 120 V Output: 12 V Wattage: 60 W Dimmable
Learn more
Mounting

Conduit Stabilizer for MP-J (with ¾” conduit)

CSKIT-MPJ

Conduit Stabilizer for MP-J (with ¾” conduit)
Learn more

Deck Mount for MP-30 and MP-31

MP30-DM-XX

Aluminum, powder-coated accessory used for deck mounting FX Luminaire MP-30 and MP-31 path lights.
Learn more
Splicing

Brass Lug Wire Connectors, 2-pack

WCHSBS2

Protects fixtures from damage by ensuring a secure wire connection. Includes two brass lug
Learn more

Brass Lug Wire Connectors, 50-item Bulk Pack

WCHSBS50

Protects fixtures from damage by ensuring a secure wire connection. Includes 50 brass lug connectors
Learn more

Heat Shrink Wire Connectors, 20-pack, Small

WCHSSM20

Adhesive-filled heat shrink tubes protect fixtures from damage and optimize system performance by
Learn more

Heat Shrink Wire Connectors, 20-pack, Medium

WCHSMD20

Adhesive-filled heat shrink tubes protect fixtures from damage and optimize system performance by
Learn more
Replacement Lamps
Customizable

G4 LED Lamp

G4-LED-XX-Y

G4 LED Lamp, Output (XX), CCT (Y)
Learn more

Specifications

 Download Spec Sheet

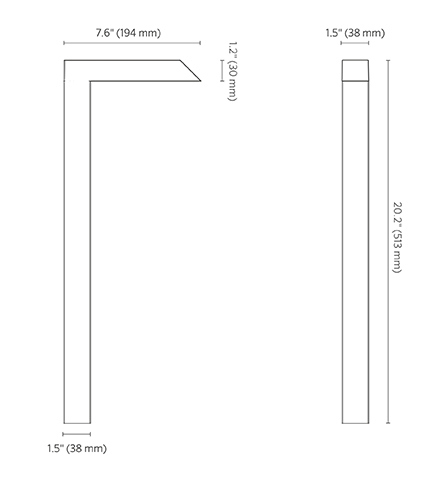

MP-30 and MP-31 Dimensions

Model MP-30   MP-31
Light Source PowerBoard™ Integrated LEDs G4 LED Lamp
Power 1LED ZDC E2
Total Lumens (lm) 60 40-85 50
Input Voltage (V) 10-15  11-15 10-15
Power Consumption (VA) 2.2 4.3 1.3
Efficacy (lm/W) 30.0 13.0 44.9
Color Temperature (CCT) 2700K
3000K
585-595 nm		 - 2700K
3000K
Color Rendering Index (CRI) 85+ - 84+
Maximum Candela (cd) 30 30 25
Luxor® Compatibility
    Powerline Zoning (Z) Included Included -
    Smooth PWM Dimming (D) Included Included -
    RGBW Color-Changing (C) - Included -
Minimum Rated Life (L70/B10) 72,000 Hrs 55,000 Hrs 33,000 Hrs

Additional Certifications
Country of Origin

Made In Mexico

Description
For distinct aesthetics that outlast the elements, elevate your outdoor space with the integrated MP-30, the lamped MP-31, or the larger, integrated MP-40.
Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

Lamp Specification

Integrated module with gold plated connectors and conformal coating for maximum reliability and corrosion resistance. Proprietary on-board intelligent driver uses firmware-controlled temperature regulation, maximizing LED life. PCBA is serviceable, field upgradeable, and replaceable. Maximum drive current: 1 A.

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

Materials

Die-cast and extruded aluminum

Optics

Color temperature is defined by part number. Beam angle is calculated using ANSI/IES LM-79.

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Videos

Modern™ MP-30 and MP-31 Path Lights
As the latest additions to FX Luminaire’s Modern Collection, the Modern MP-30 and MP-31 Petite Path Lights offer the perfect blend of contemporary style

All Product Videos

Documents

Select Type

  • All Documents
  • Specifications
  • Installation
  • Marketing
  • Photometrics
  • Replacement Parts
  • Software
Document Name Actions
FX Luminaire Collections Flyer
Download
Modern Collection Brochure
Download

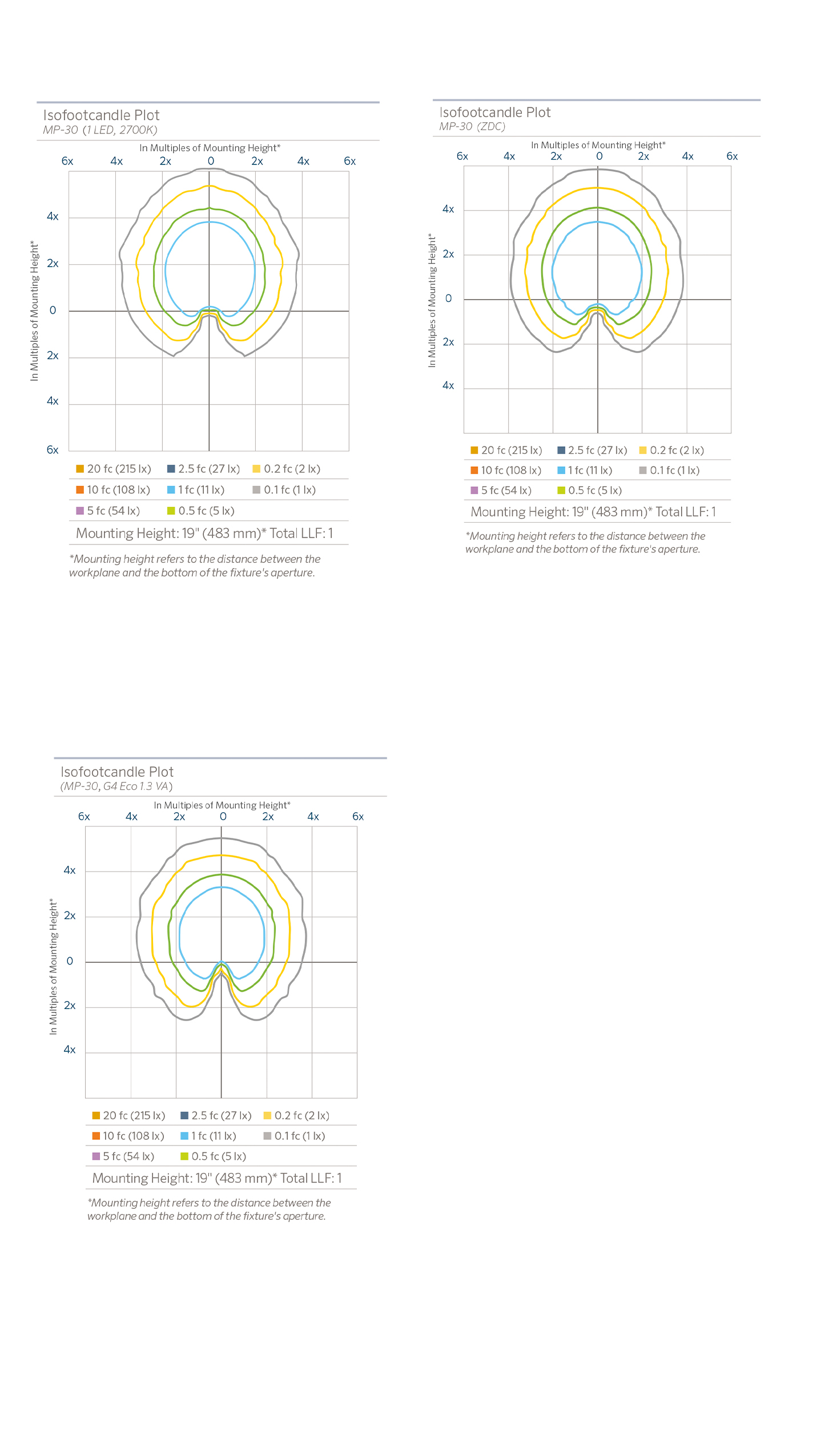

MP-30 IES PHOTOMETRICS
