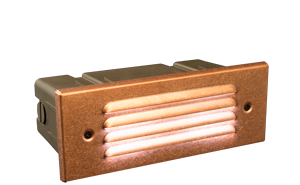

Garden™ LM

LED Wall Light
LEDs 2
Lamp G4
Material Premium Copper
Depth 4.2" (107 mm)
Width 9.1" (231 mm)
Height 3.5" (89 mm)
Finishes

Overview

When a lighting project calls for a higher level of illumination, call on the LM. Utilizing the same smart design as the CP, the LM offers 20 watts to the 10 watts of the CP. Use the LM alone or install in conjunction with CP to maintain consistent lighting design style. To achieve the best effect and utility, install the LM fixture in the wall adjacent to a stairway.

Quick Facts
  • Slim, unobtrusive low-profile design offers minimalist aesthetics to accommodate other elements inside the wall
  • Built-in Luxor® Technology enables powerline zoning and smooth PWM dimming with the industry-leading Luxor Controller
  • Available in a warm (2700K) and soft (3000K) color temperatures
  • Available in a wide range of powder-coated finishes to suit all exterior designs and preferences
  • Custom recessed installation kit included

Configure Product

Select from the options below to configure this product, then add it to your My List.

Lighting Engine

Which lighting engine is right for you?

Powerboard Integrated LED

G4

Luxor Control

Which control is right for you?

ZD

Zone/Dim with Luxor

Power

What does LED output mean?

2LED

4.5 VA

Lamp

E4

2 x 1.3 VA G4 LED Lamp (Eco Lamp Series)

LED40

2 x 1.3 VA G4 LED Lamp (Eco Lamp Series)

LED Color

Which color option is right for you?
Warm

W

Warm (2700K)

Soft

S

Soft (3000K)

Finish

Antique Bronze

Antique Bronze (AB)

Bronze Metallic

Bronze Metallic (BZ)

Black

Black (FB)

Sedona Brown

Sedona Brown (SB)

Desert Granite

Desert Granite (DG)

Weathered Iron

Weathered Iron (WI)

White

Flat White (FW)

Silver

Silver (SV)

Natural Copper

Natural Copper (CU)

Product Configuration

Clear Selection
Garden™ LM
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power
Image of the Step-Down Transformer

Plug-In Transformer, 6 W

MT-6W

6 W, Plug-In Transformer, 12VAC
Learn more

Step-Down Transformer, UV (120/277 V to 12 V)

ST-UV

Step down transformer (120V to 12V) Input voltage: 120V-240V Output: 12V Wattage: 30W Non-dimmable
Learn more

Luxor Cube - Low-Voltage

LCM-LV

Adds zoning and dimming capabilities to other brands lighting fixtures and outdoor elements
Learn more

Surge Protection Module

SURGE-MOD

The SURGE MOD is designed to provide two additional layers of surge protection to any low-voltage
Learn more
Mounting

eKitWall

Includes strain relief and connector for low-voltage fixture cable. Required accessory for CE
Learn more
Replacement Lamps
Customizable

G4 LED Lamp

G4-LED-XX-Y

G4 LED Lamp, Output (XX), CCT (Y)
Learn more

Specifications

 Download Spec Sheet

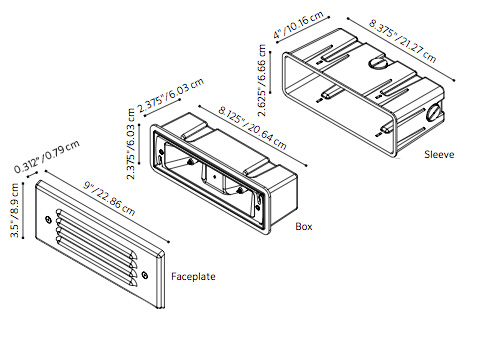

Note: Faceplate width with louver is 0.50”

 Light Source 2 LEDG4 LED Lamp
Total Lumens (lm)3530
Power Consumption (VA)4.52.6
Efficacy9
LED Color2700K
Input Voltage10 to 15V10 to 15V
Color Rendering Index (CRI)87
Minimum Rated Life (L70)72,00033,000

Additional Certifications

IDA, CB Scheme, CE, RoHS, RCM, NOM UL 1838

Country of Origin

Made In Mexico

CSA

CSA C22.2 NO. 250.7

Description
Featuring a durable, copper construction, these recessed fixtures bring light to walkways, stairways, and decks. Use the 20 W LM on its own or pair it with the 10 W CP to maintain a consistent style.
EMC - CE

EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547

Environment

Outdoor

ETL

UL 1838

FCC

FCC CFR Part 15 Subpart B

HTS Code
Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

International Compliance requirements

Compliant per IEC 60598-1 and IEC 60598-2-7 when used with International Wall Kit (“EKITWALL”).

Ingress Protection (IP) Testing

IP64

ISED

ICES-005

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

LVD - CE

EN 60598-1,EN60598_2_2

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.
