Garden™ UN
Overview

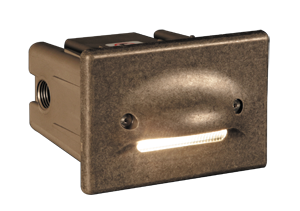

The UN provides all of the great features of the CP with gentler, more organic lines. FX also offers the UN in both brass and composite material for application flexibility. Like the CP, the UN washes walkways with a shadow-free smooth illumination, which highlights the detail in fine stone work or the richness of a redwood deck.
- Premium, corrosion-resistant brass construction protects internal and external elements of the fixture
- Built-in Luxor® Technology enables powerline zoning and smooth PWM dimming with the industry-leading Luxor Controller
- Available in a warm (2700K) color temperature
- Custom recessed installation kit included
Configure Product
Select from the options below to configure this product, then add it to your My List.
Lighting Engine
Luxor Control
ZD
Zone/Dim with Luxor
Power
1LED
2.4 VA
Lamp
LED20
1.3 VA G4 Lamp (20W equivalent Lamp)
LED Color
W
Warm (2700K)
Finish
Natural Brass (BS)
Bronze Metallic (BZ)
Black (FB)
Sedona Brown (SB)
Desert Granite (DG)
Weathered Iron (WI)
Flat White (FW)
Silver (SV)
Camo Bronze (CB)
Desert Tan (DT)
Accessories
Select Type
- All Accessories
- Recommended
- Power
- Mounting
- Filters
- Splicing
- Glare
- Lenses
- Replacement Lamps
X*-LED-ULKIT
LED Replacement Kit, Integrated, X-LED
ZD-X*-LED-ULKIT
ZD LED Replacement Kit
Specifications

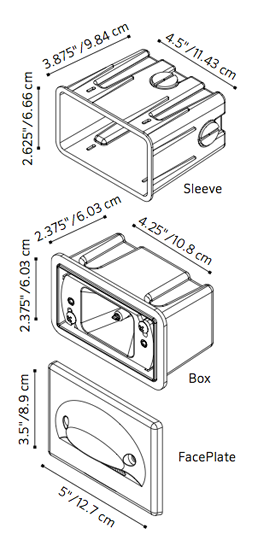

Note: Faceplate width with louver is 1.13”
| LED20W | 1LED | |
|---|---|---|
| Total Lumens (lm) | 10 | 43 |
| Power Consumption (VA) | 1.3 VA | 2.4 VA |
| Efficacy (lm/W) | 8 | 24 |
| Correlated Color Temperature (CCT) | 2700K | 2700K |
| Maximum Candela (cd) | -- | 44 |
| Color Rendering Index (CRI) | 83+ | 83+ |
| Input Voltage (V) | 10 to 15 V | 10-15 V |
| Dimming | Phase | Phase |
| BUG Rating | B0-U1-G0 | B0-U1-G0 |
| Minimum Rated Life (L70) | 33,000 Hrs | 72,000 Hrs |
IDA, CB Scheme, CE, RoHS, RCM, NOM UL 1838
Made In Mexico
CSA C22.2 NO. 250.7
EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547
Outdoor
UL 1838
FCC CFR Part 15 Subpart B
10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)
Compliant per IEC 60598-1 and IEC 60598-2-7 when used with International Wall Kit (“EKITWALL”).
IP64
ICES-005
L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.
EN 60598-1,EN60598_2_2
Specified power consumption indicates the full apparent power.
Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.
