PAR-36

Eco LED Lamp
Lamp Base PAR36
Power Consumption 8.5 VA - 11.3 VA
Beam Angles 2
Total Lumens 690–850

Overview

The powerful PAR-36 Eco Lamp is perfect for applications that require a high output. Delivering up to 860 lumens, it’s available in two intensities, two beam angles, and two color temperatures.

Quick Facts
  • Durable, lightweight aluminum housing withstands any weather condition
  • Compatibility with Luxor® Low-Voltage CUBE for zoning and dimming capabilities
  • Two beam angle options for greater design flexibility
  • Two color temperature options offer a warm (2,700K) or soft (3,000K) look
  • Available in 6 W and 10 W intensities for use in a variety of applications
  • Comes preinstalled in CF Well Lights

Configure Product

Select from the options below to configure this product, then add it to your My List.

Lighting Engine

Which lighting engine is right for you?

PAR-36

Power

What does LED output mean?

35

335-480 lumens; 5.4 VA

50

6.5 VA

LED Color

Which color option is right for you?
Warm

W

Warm (2700K)

Soft

S

Soft (3000K)

Optic

FL

Flood (30°)

WF

Wide Flood (60°)

Product Configuration

Clear Selection
PAR-36
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power

Luxor Cube - Low-Voltage

LCM-LV

Adds zoning and dimming capabilities to other brands lighting fixtures and outdoor elements
Learn more
DIM-LV

Low-Voltage Dimmer

DIM-LV

The Low-Voltage Dimmer provides in-line dimming control for any low-voltage fixture. It’s the ideal
Learn more

Specifications

 Download Spec Sheet

OutputECO35ECO50
Total Lumens670 - 680850 - 860
Power Consumption (VA)8.5 W11.3 W
Efficacy (lm/W)115115
Maximum Candelas (cd)749 to 1,138849 to 1,521
Color Rendering Index (CRI)84 to 8583 to 85
Input Voltage10 to 15 VAC10 to 15 VAC
Input Power6.0 W10.0 W
ControlPhase-cut*Phase-cut*
Rated Life (L70)50,00050,000

* For optimal performance, use a trailing-edge (reverse phase-cut) dimmer.

Additional Certifications

RoHS

Ambient Operating Temperature

0°F to 140°F (-18°C to 60°C)

Country of Origin

Made In China

Description
The versatile MR-11 and AR-11 Eco Lamps are ideal for low-output applications while the powerful PAR-36 Eco Lamp is perfect for high-output needs.
EMC - CE

EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547

Environment

Outdoor

FCC

FCC CFR Part 15 Subpart B

HTS Code

8539.52.0030

Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

Ingress Protection (IP) Testing

IP67

ISED

ICES-005

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

Materials

Silicone

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Warranty

3-year limited

Weight

0.01 lbs (4.5 g)

Videos

FX Luminaire Lamps Product Guide
At FX Luminaire, we’re dedicated to helping lighting professionals solve complex installation challenges, from the ground up. That’s why we provide a

All Product Videos

Documents

Select Type

  • All Documents
  • Specifications
  • Installation
  • Marketing
  • Photometrics
  • Replacement Parts
  • Software
Document Name Actions
Lamp Ordering Guide
Download

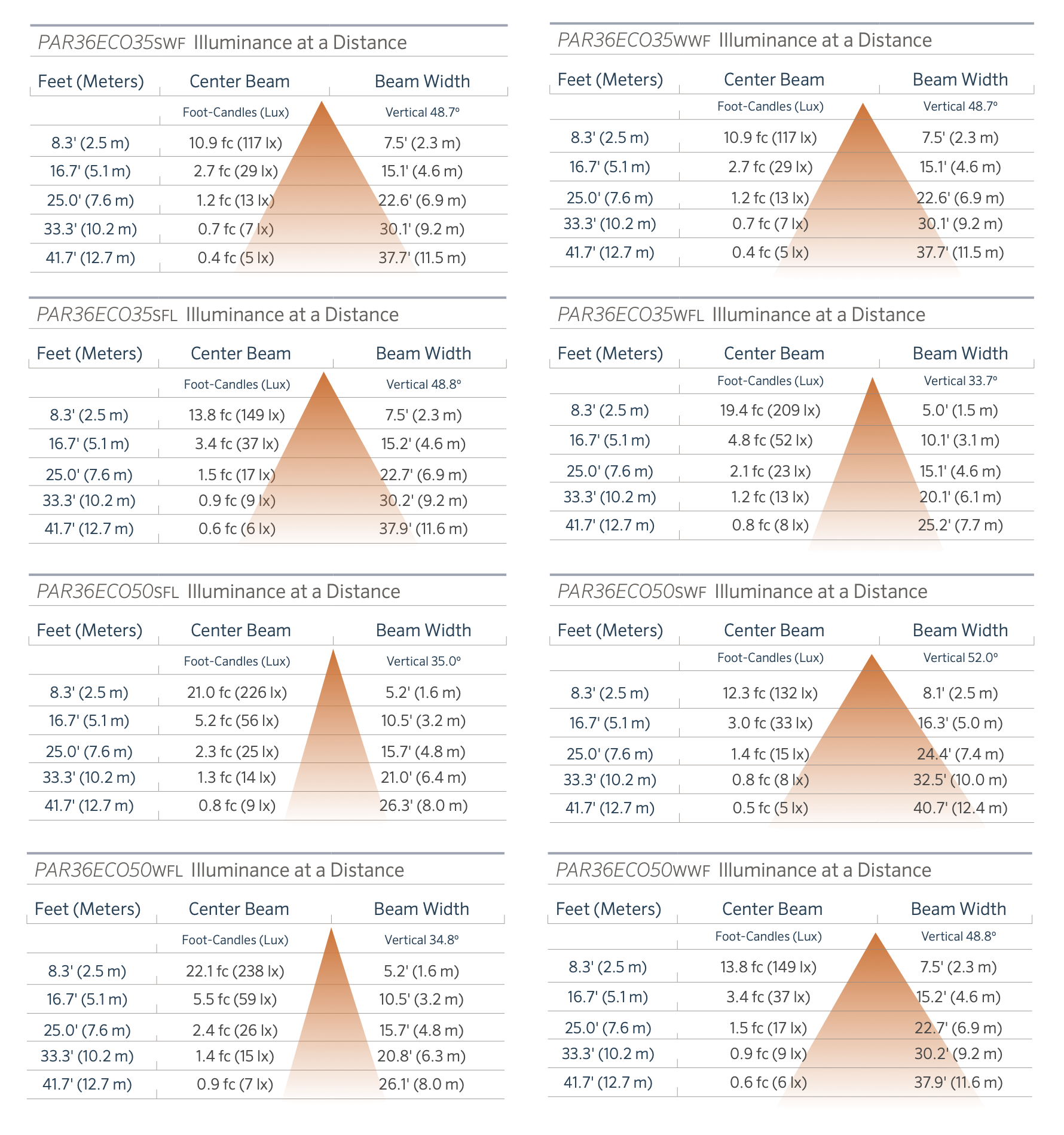

PAR-36 IES Photometrics
