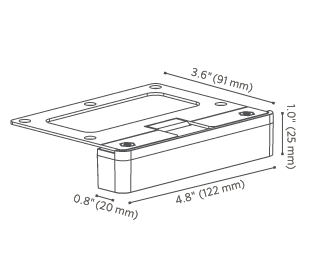

With an innovative snap-on lens, the LD ledge light is easy to install and service. At less than 5" (127 mm) wide, it shines as FX Luminaire’s smallest ledge light.

Quick Facts

  • Die-cast aluminum construction

  • Superior outdoor TGIC powder-coated finish options

  • Silicone-encapsulated COB LED

  • Tamper-resistant features

  • Compatible with Luxor® technology

  • Phase dimmable

  • Input voltage: 10–15 VAC/VDC

Models
Copy Link

Ordering Information - Spec Builder

Select your specifications

Fixture

Power

Finish

Select Finish

Spec Builder Output

Log in to access this feature

Log in using your Hunter Account

Forgot Password?
orCreate account


Included Accessories & Parts

Includes fixture, G4 LED lamp (1), 10' (3 m) lead wire, and mounting bracket



Videos
Copy Link
Specs
Copy Link

LD Specifications Chart

Output G4 20W
Total Lumens (lm) 75
Input Voltage (V) 10 to 15
Power Consumption (VA) 1.3
Efficacy (Lumens/Watt) 62
Color Rendering Index (CRI) 83+
Maximum Candelas (cd) 32
Dimming
    Primary Dimming (Transformer) Consult transformer specifications
    Secondary Dimming (Fixture) Phase-cut**
Minimum Rated Life (L70) 33,000 Hrs
Accessories
Copy Link

Power Accessories

  •
    Luxor CUBE- Low-voltage
    LCM-LV
  •
    Plug-In Transformer, 6 W
    MT-6W
  •
    Step-Down Transformer, UV (120/277 V to 12 V)
    ST-UV
  •
    Surge Protection Module -
    SURGE-MOD

Splicing

  •
    Brass Lug Wire Connectors, 2-pack
    WCHSBS2

* Includes 3" jumper cable (1), 6" jumper cable (1), closed-end connectors (5), and power feeds (5).

Replacement Lamps

  •
    G4 LED Lamp
    G4-LED-XX-Y

X = number of LEDs
XX = output option
Y = color temp
ZZ = beam angle

Spec Builder Output - Accessory

Log in to access this feature

Log in using your Hunter Account

Forgot Password?
orCreate account

Documents
Copy Link

Brochures

English
FX Luminaire Collections Flyer

Literature

English
LD Ledge Light - Spec Sheet
English
fx-324-ir-cas-ld-us-web.pdf

Manuals

English
LD Standard - Install Note
English
LD G4 Replacement Parts List

Product Catalog

English
Product Guide - Deck and Hardscape Lighting

Specifications

English
LD-20 IES Photometrics
English
LD-35 IES Photometrics
Photos
Copy Link

Application

Studio
