Modern™ MP-K

Path Light
LEDs 1, 3, ZDC
Material Aluminum

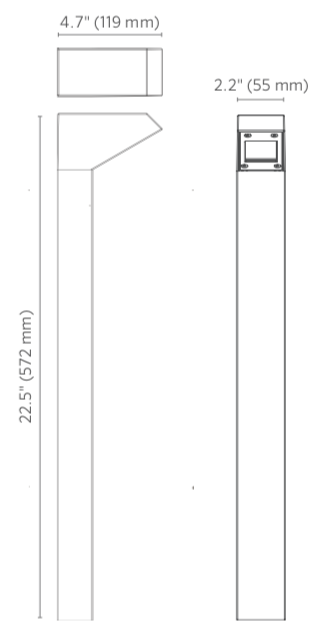

Width 2.2" (55 mm)
Height 22.5" (572 mm)
Finishes

Overview

Made with durable die-cast aluminum, the stylish M-PK path light adds elegance and sophistication to modern lighting installations.

Quick Facts
  • Crafted from sturdy die-cast and extruded aluminum, ensuring resilience and longevity
  • Minimal visible hardware for a clean and elegant design, day or night
  • Extra-long, standard conduit with stabilizer enables ground mounting in any environment
  • Driver on Board Technology layout for compact design and fewer components
  • Built-in Luxor® Technology enables powerline zoning, smooth dimming, and RGBW color-changing with the Luxor Controller
  • Available in static color temperature, wildlife-friendly, and dynamic RGBW color-changing options
  • Available in a wide range of powder-coated finishes to suit all exterior designs and preferences

Configure Product

Select from the options below to configure this product, then add it to your My List.

Luxor Control

Which control is right for you?

[Default]

On/Off | Phase Dimmable | Zone with Luxor

ZD

Zone/Dim with Luxor

ZDC

Zone/Dim/Color with Luxor

Power

What does LED output mean?

1LED

2.4 VA

3LED

4.5 VA

[Default]

Default ZDC Option 6.0W/7.2VA

LED Color

Which color option is right for you?
Warm

[Default]

Warm (2700K)

Soft

S

Soft (3000K)

Compliance

UL Listed

[Default]

North America (UL Listed)

CE Certified

E

International (CE Certified)

Finish

Bronze Metallic

Bronze Metallic (BZ)

Black

Black (FB)

Sedona Brown

Sedona Brown (SB)

Desert Granite

Desert Granite (DG)

Weathered Iron

Weathered Iron (WI)

White

Flat White (FW)

Silver

Silver (SV)

Product Configuration

Clear Selection

Included Parts & Accessories

  • 3/4'' Conduit
  • Conduit Stabilizer
  • Hex Key
Modern™ MP-K
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Mounting
Customizable

Deck Mount for MP-40 and M-PK Modern Path Lights

M-PL-DM-XX*

Aluminum, powder-coated accessory used for deck mounting FX Luminaire MP-40 and M-PK Modern Path
Learn more

Conduit Stabilizer for M-PJ, M-PK, MP-40, and M-PZ Modern Path Lights

CSKIT-MPL

Adds strength in modern path light installations. The stabilizer’s wings prevent the conduit from
Learn more
Replacement Lamps

Specifications

 Download Spec Sheet

Lamp1LED3LEDZDC
Total Lumens*100245110-265
Input Voltage10 to 15V10 to 15V11 to 15V
Input Power (W)2.04.26.0
VA Total2.44.57.2
Lumens per Watt
(Efficacy)		343618
CRI (Ra)80+80+80+
Max Candela6014374
DimmingPWM, PhasePWM, Phase--
RGBW AvailableNoNoYes
Luxor® Compatibility
DefaultZoningZoning--
ZD OptionZoning/DimmingZoning/Dimming--
ZDC Option----Zoning/Dimming/Color
Minimum Rated Life (L90/B10)55,000 Hrs55,000 Hrs55,000 Hrs

*Measured using the 3,900K CCT lens. Multipliers for other CCTs include 0.80 (2,700K), 0.65 (4,500K), and 0.65 (5,200K).

Additional Certifications

NOM UL 1838

Country of Origin

Made In Mexico

CSA

CSA C22.2 NO. 250.7

Description
Made with durable die-cast aluminum, the stylish MP-K and MP-Z Path Lights add elegance and sophistication to modern lighting installations.
EMC - CE

EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547

Environment

Outdoor

FCC

FCC CFR Part 15 Subpart B

HTS Code
Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

International Compliance requirements

Compliant per IEC 60598- 1 and IEC 60598-2-7 by selecting "e" option in parts builder

Ingress Protection (IP) Testing

IP66

ISED

ICES-005

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

LVD - CE

EN 60598-1,EN 60598-2-4

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Videos

Modern Path Lights from FX Luminaire
For more than three decades, FX Luminaire has elevated pathways, walkways, and landscapes worldwide with our timeless, traditional path light collection
What’s New, Lighting, 2021
FX Luminaire presents a webinar on What's New in Lighting for 2021.
Modern Path Lights for Outdoor Landscape Lighting
FX Luminaire introduced a few new path lights that are a sleek and modern design, appropriately called Modern Path Lights. Ryan explains the features

All Product Videos

Documents

Select Type

  • All Documents
  • Specifications
  • Installation
  • Marketing
  • Photometrics
  • Replacement Parts
  • Software
Document Name Actions
FX Luminaire Collections Flyer
Download

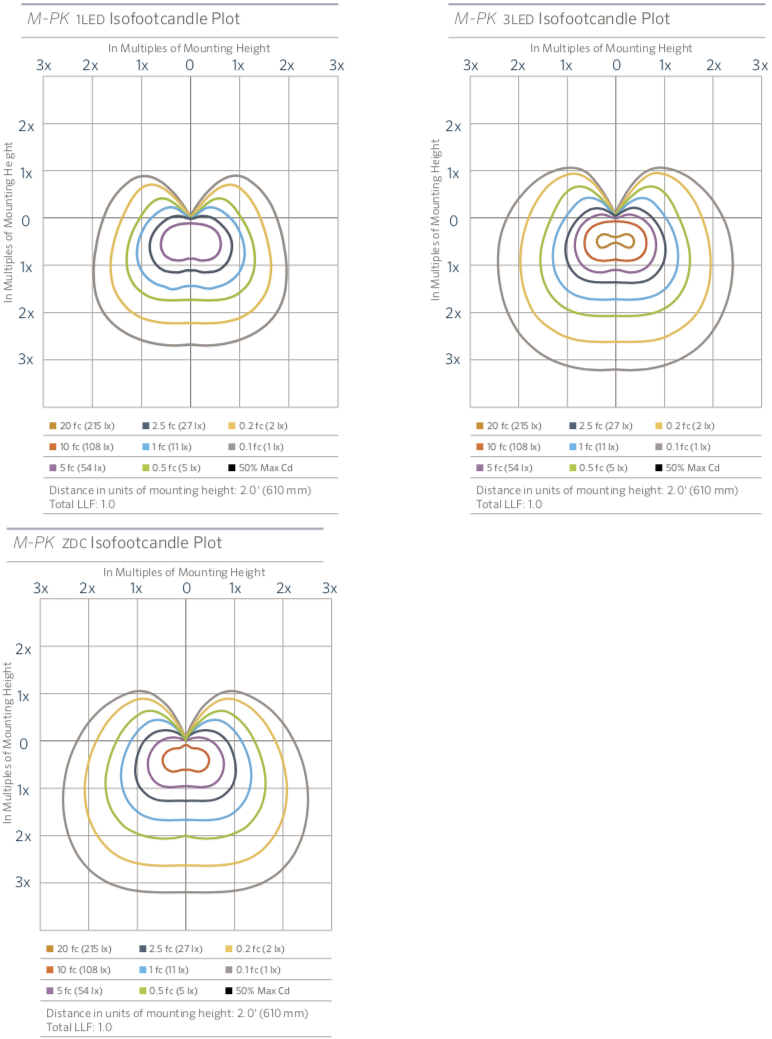

M-PK - IES Photmetrics
