Cora™ CP-L
Overview

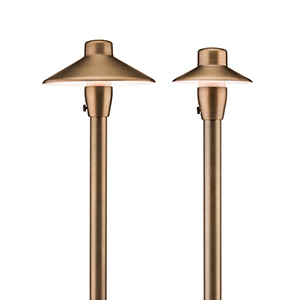

Made with durable, midgrade brass, the compact C-PL-4 and C-PL-7 path lights are perfect additions to lighting projects for budget-conscious clients. Because of their corrosion-resistant construction, they are especially at home in coastal regions.
- Select brass construction and black oxide stainless steel hardware delivers strong corrosion resistance, increased durability, and an elegant look
- Compatible with the Luxor® Low-Voltage CUBE for powerline zoning and smooth dimming
- Available in a warm (2700K) color temperature
- Antique bronze finish provides increased durability and elegant look
Configure Product
Select from the options below to configure this product, then add it to your My List.
Power
[Default]
Default ZDC Option 6.0W/7.2VA
Lamp
LED20
1.3 VA G4 Lamp (20W equivalent Lamp)
LED Color
W
Warm (2700K)
Riser
18R
18'' Riser
Finish
Antique Bronze (AB)
Accessories
Select Type
- All Accessories
- Recommended
- Power
- Mounting
- Filters
- Splicing
- Glare
- Lenses
- Replacement Lamps
PM-XX*
Post Mount
VB-050-XX*
VersaBox® Mount with ½" Thread
MJB-050-XX*
Mini J-Box for ½" Thread
753900
Super Slot Spike
250015840000
Long Slot Spike
250020020000
Three-Prong Spike
SJ-XX*
Super J-Box Spike
WCHSBS2
Brass Lug Wire Connectors, 2-pack
WCHSBS50
Brass Lug Wire Connectors, 50-item Bulk Pack
WCHSSM20
Heat Shrink Wire Connectors, 20-pack, Small
Specifications
| Lamp | LED-20W |
|---|---|
| Halogen Lumen Output Equivalent | 20W |
| Minimum Rated Life (L70) | 33,000 hrs |
| Input Voltage | 10 to 15V |
| Power Consumption (VA) | 1.3 |
| Total Lumens | 35 |
| Lumens per Watt (Efficacy) |
30 |
| CRI (Ra) | 80+ |
| Dimming | Phase |
| Luxor Compatibility | |
| ZD Option | Use Luxor Cube (LCM-LV) |
NOM UL 1838
Made In China
CSA C22.2 NO. 250.7
Outdoor
FCC CFR Part 15 Subpart B
Antiqued finish with brushed effect.
Includes 10" (254 mm) polycarbonate slotted installation spike.
10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)
Designed for installation in the downward lighting direction only.
ICES-005
G4 lamp base. Preinstalled G4 LED lamp option offers a warm 2,700K color temperature with a minimum rated life (L70) of 33,000 hours.
Tempered glass lens with shock resistance and high tolerance for thermal expansion and stress.
L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.
9001:2015 certified facility
Die-cast mid-grade brass housing/knuckle assembly with brass hardware.
Specified power consumption indicates the full apparent power.
G4 socket. Ceramic socket base with heat-resistant contact pad.
Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.
10-year limited warranty on luminaire; 5-year limited warranty on preinstalled FX LED lamp; no warranty on incandescent or halogen lamp.
2.5 lbs. (1.1 kg)
18 AWG (1 mm); SPT-1W; 220°F (105°C); 300V; 10' (3 m) length.
