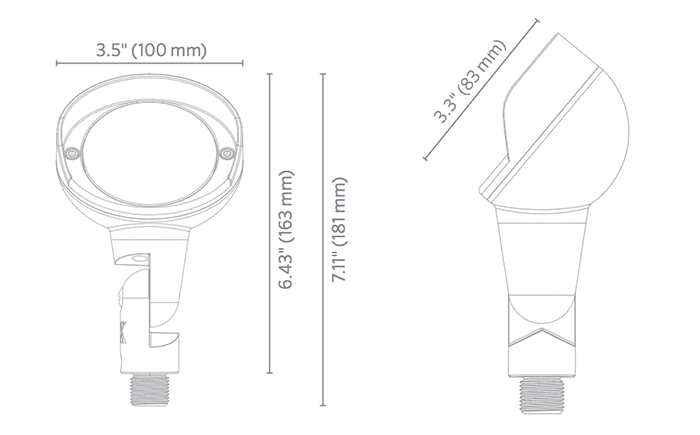

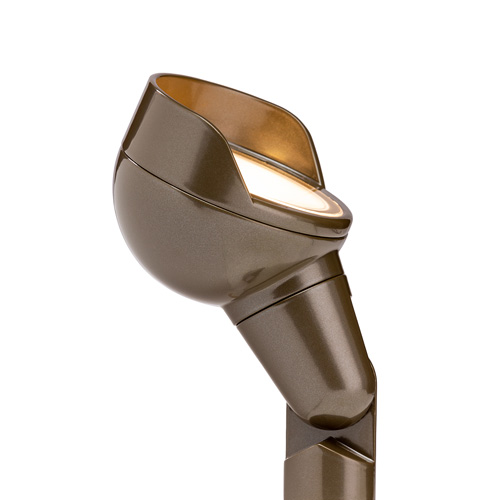

Vantage™ WS

Brass mount includes a 1½" (38 mm) PVC Schedule 40 conduit with ½" thread. Used for positioning up light and path light fixtures above grade. Available in metal and powder-coat finishes.

XX = Finish code
* Make selection from list

Tamper-resistant, aluminum ground mount accessory with ½" thread. Used for positioning up light and path light fixtures above grade. Includes a 2.0" (40 mm) PVC Schedule 40 conduit and can be used as a junction box for CE certification. Available in metal and powder-coat finishes. Dimensions: 2.7" x 11.8" (67 mm x 298 mm).⇥

XX = Finish code
* Make selection from list

Brass junction box with ½" thread. Includes setscrew for adjusting fixture angle and features a cavity that hides the wire connectors for a cleaner look. Dimensions: 2.2" x 1.5" (570 mm x 390 mm).

XX = Finish code
* Make selection from list

This expanded junction box provides more space to hold extra wire and connectors. An optional snap-on backing makes servicing simple and tool-free. Setscrew included for adjusting fixture angle. Allows any fixture with ½" thread to surface-mount onto eaves, soffits, and fascias.

XX = Finish code
* Make selection from list

Aluminum accessory used for mounting up or down light fixtures in trees. Includes stainless steel hanger bolts, a strain relief connector, and two female ½" threaded adapters for up to two fixtures.

XX = Finish code
* Make selection from list

A slotted spike that secures fixtures firmly into the ground. Side wire insertion slot makes installation easier. Included with most FX Luminaire up light fixtures. Dimensions: 2.0" x 8.0" (50 mm x 203 mm).

Made of recycled regrind, this spike secures fixtures firmly into the ground. Side wire insertion slot makes installation easier. Larger than our Super Slot Spike, it’s designed to support heavier FX Luminaire fixtures like path lights and up lights. Dimensions: 2.5" x 10.0" (63 mm x 254 mm).

Three spikes offer extra stability for securing top-heavy fixtures firmly into the ground. Dimensions: 5.1" x 9.0" (129 mm x 229 mm).

Adjustable plastic riser allows you to change the height of an FX Luminaire up light up to 7.0" (178 mm). Includes built-in strain relief to prevent disconnection. For use with initial installs or retrofits.

A long slot spike that secures fixtures firmly into the ground. Includes a built-in junction box. Side wire insertion slot makes installation easier. Dimensions: 2.5" x 12.0" (63 mm x 305 mm).

XX = Finish code
* Make selection from list

Aluminum knuckle allows you to surface mount directional fixtures with ½" threads. Dimensions: 3.5" x 2.0" (890 mm x 510 mm).

XX = Finish code
* Make selection from list

Small aluminum knuckle with ½" thread allows you to surface-mount directional down lights. Included with FX Luminaire directional down lights. Dimensions: 2.6" x 1.3" (650 mm x 320 mm).

XX = Finish code
* Make selection from list

Die-cast aluminum single-gang junction box used for surface-mounting fixtures. Available in powder-coat finishes only. Dimensions: 3.5"x 5.1" (85 mm x 129 mm).

XX = Finish code
* Make selection from list

Aluminum wall mount with ½" threaded adapter used for positioning up or down light fixtures. Can be paired with Sign Light Riser (YY*-R-SL-XX*). Available in powder-coat finishes only.

XX = Finish code
* Make selection from list

Stainless steel mount with ½" thread used for attaching fixtures to gutters. Dimensions: 4.0" x 4.0" x 0.8" (102 mm x 102 mm x 19 mm).⇥

Aluminum riser with ¾" (19 mm) diameter allows you to raise the height of path lights. Includes ½" male threads on both ends and is compatible with a variety of coupling options. Available in multiple heights. For use with initial installs or retrofits.

YY = Height
XX = Finish code
* Make selection from list

Aluminum coupling with ½" female threads extends up light or down light fixture height when attached to a riser.

XX = Finish code
* Make selection from list

Aluminum coupling with ½" female threads changes mounting direction by 90°. Includes setscrew to hold threads in place. Commonly used with down light fixtures.

XX = Finish code
* Make selection from list

Aluminum coupling with ½" female threads provides outlets for mounting two up or down lights on a single riser.

XX = Finish code
* Make selection from list

Curved aluminum sign light riser includes ½" male threads and is compatible with aluminum FX Luminaire down lights. Pairs with round or square mounting base. Dimensions: 0.8" (21 mm) diameter with 45° inward curve.

YY = Height
XX = Finish code
* Make selection from list

Allows you to mount up lights or down lights on a tree. Available in 18.0" (460 mm) or 24.0" (610 mm) diameters and can accommodate up to six fixtures. Made of aluminum with powder-coat options in Bronze or Flat Black.

YY = Size
XX = Finish code
* Make selection from list

Spike with built-in ratcheting feature allows you to angle the light in any direction, then tighten it in place. Dimensions: 2.5"x 10.0" (63 mm x 254 mm).

CE installation kit for up lights and path lights. Includes spike, junction box, O-ring, strain relief, and connector for low-voltage fixtures. Required accessory for CE compliance.

Lets you aim a fixture in any direction and lock it down onto the stake without pre-orienting it. Two convenient finger tabs make securing the job easy. Included with every FX Luminaire up light and wall wash fixture. Must order in multiples of 25.
