Designer™ PL

Aluminum Path Light
LEDs 1, 3, ZDC
Material Aluminum
Diameter 6" (152 mm)
Height 15" (381 mm)
Finishes

Overview

The wider angle of the PL allows broader lighting for larger spaces. It is made of aluminum, and while it may be a lighter-weight construction, it can still be relied on to thoroughly illuminate anything in its path. The aesthetic design of the PL was created to compliment the landscape and add to the overall ambiance.

Quick Facts
  • Built with durable, lightweight aluminum housing that withstands any weather condition
  • Built-in Luxor® Technology enables powerline zoning, smooth dimming, and RGBW color-changing with the Luxor Controller
  • Available in static color and dynamic RGBW color-changing options
  • Available in a wide range of powder-coated finishes to suit all exterior designs and preferences

Configure Product

Select from the options below to configure this product, then add it to your My List.

Luxor Control

Which control is right for you?

[Default]

On/Off | Phase Dimmable | Zone with Luxor

ZD

Zone/Dim with Luxor

ZDC

Zone/Dim/Color with Luxor (Medium Round 3 LED)

Power

What does LED output mean?

1LED

2.4 VA

3LED

4.5 VA

[Default]

Default ZDC Option 6.0W/7.2VA

LED Color

Which color option is right for you?
Warm

[Default]

Warm (2700K)

Soft

S

Soft (3000K)

Riser

12RA

12'' Riser Assembly

18RA

18'' Riser Assembly

24RA

24'' Riser Assembly

Finish

Bronze Metallic

Bronze Metallic (BZ)

Black

Black (FB)

Sedona Brown

Sedona Brown (SB)

Desert Granite

Desert Granite (DG)

Weathered Iron

Weathered Iron (WI)

White

Flat White (FW)

Silver

Silver (SV)

Product Configuration

Clear Selection
Designer™ PL
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power
Image of the Step-Down Transformer

Plug-In Transformer, 6 W

MT-6W

6 W, Plug-In Transformer, 12VAC
Learn more

Step-Down Transformer, UV (120/277 V to 12 V)

ST-UV

Step down transformer (120V to 12V) Input voltage: 120V-240V Output: 12V Wattage: 30W Non-dimmable
Learn more

Luxor Cube - Low-Voltage

LCM-LV

Adds zoning and dimming capabilities to other brands lighting fixtures and outdoor elements
Learn more

Surge Protection Module

SURGE-MOD

The SURGE MOD is designed to provide two additional layers of surge protection to any low-voltage
Learn more
Mounting
Customizable

Ground Mount with ½" Thread

GM-XX*

Tamper-resistant, aluminum ground mount accessory with ½" thread. Used for positioning up light and
Learn more
Customizable
VB-050

VersaBox® Mount with ½" Thread

VB-050-XX*

Brass junction box with ½" thread. Includes setscrew for adjusting fixture angle and features a
Learn more
Customizable
MJB050BZ_001_RT

Mini J-Box for ½" Thread

MJB-050-XX*

This expanded junction box provides more space to hold extra wire and connectors. An optional snap
Learn more

Super Slot Spike

753900

A slotted spike that secures fixtures firmly into the ground. Side wire insertion slot makes
Learn more

Long Slot Spike

250015840000

Made of recycled regrind, this spike secures fixtures firmly into the ground. Side wire insertion
Learn more

Three-Prong Spike

250020020000

Three spikes offer extra stability for securing top-heavy fixtures firmly into the ground
Learn more

Variable Height Riser for Up Lights

VHR-UL

Adjustable plastic riser allows you to change the height of an FX Luminaire up light up to 7.0" (178
Learn more
Customizable

Super J-Box Spike

SJ-XX*

A long slot spike that secures fixtures firmly into the ground. Includes a built-in junction box
Learn more
Customizable

Aluminum Riser, ¾" Diameter

YY*-R-XX*

Aluminum riser with ¾" (19 mm) diameter allows you to raise the height of path lights. Includes ½"
Learn more
Customizable

Straight Coupling

COUP-XX*

Aluminum coupling with ½" female threads extends up light or down light fixture height when attached
Learn more

ProAim® Ratcheting Spike

PARS

Spike with built-in ratcheting feature allows you to angle the light in any direction, then tighten
Learn more
Replacement Lamps

Specifications

 Download Spec Sheet

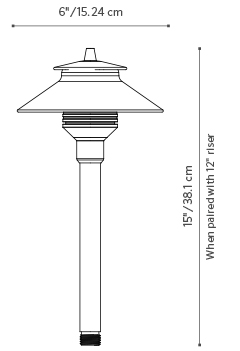

PL line drawing

Note: Example model shown has a 12" riser.

Number of LEDs 1 3 ZDC
Halogen Lumen
Output Equivalent		 10 Watt 20 Watt 10 Watt
Useful LED Life (L70) 50,000 hrs avg 50,000 hrs avg 50,000 hrs avg
Input Voltage 10 to 15V 10 to 15V 11 to 15V
VA Total
(Use this number to
size the transformer)		 2.4 4.5 7.2
Watts Used 2 4.2 6.0
Lumens per Watt
(Efficacy)		 15 25 21
Max Lumens 27 79 66
CRI (Ra) 85 82 85
CCT
    Amber Filter 2700K 2700K N/A
    Green Filter 4500K 4500K N/A
    Blue Filter 5200K 5200K N/A
Additional Certifications
Country of Origin

Made In Mexico

CSA

CSA C22.2 NO. 250.7

Description
Aluminum Riser
EMC - CE

EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547

Environment

Outdoor

FCC

FCC CFR Part 15 Subpart B

HTS Code

7609.00.0000

Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

International Compliance requirements

Compliant per IEC 60598-1 and IEC 60598-2-7 when used with ground mount (“GM-XX”) accessory, or alternate mount greater than or equal to IP65.

Ingress Protection (IP) Testing

IP65

ISED

ICES-005

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

LVD - CE

EN 60598-1,EN 60598-2-4

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.
