Overview

The MR-16 is a convenient high-quality LED lamp. The MR-16 is available in three intensities, three beam angle options, and two color temperatures. Fully potted, it carries a five-year warranty.

Quick Facts

  • Converts MR-16 incandescent fixtures to LED

  • Fully potted

  • Warm, soft, and cool color temperature: 2,700K, 3,000K, and 3,900K

  • Three intensities: 4W, 5W, and 6W (20W, 35W and 50W halogen equivalents)

  • Beam angle options: 10° (very narrow), 35° (flood), 60° (wide flood)

  • Compatible with Luxor Low- Voltage Cube (LCM-LV)

Models

Ordering Information - Spec Builder

Select your specifications

Fixture

Output Equivalent

Color Temp

Beam Angle

Spec Builder Output

Log in to access this feature

Log in using your Hunter Account

Forgot Password?
orCreate account

Specs

MR-16 Spec Chart

Output 20W 35W 50W
Total Lumens (lm) 230-290 335-480 480-505
Power Consumption (VA) 4.3 5.4 6.5
Efficacy (Lumens per Watt) 59-74 39-101 95-104
Correlated Color Temperature (CCT) 2700K, 3000K 2700K, 3000K 2700K, 3000K
Halogen Equivalent (W) 20 35 50
Beam Angle 10, 30, 45 15, 35, 47 35
Maximum Candela (cd) 395-4,590 450-2,720 1,025-1,080
Color Rendering Index (CRI) 84+ 84+ 84+
Input Voltage (V) 10-15 10-15 10-15
Dimming Phase* Phase* Phase*
Minimum Rated Life (L70) 40,000 Hrs 40,000 Hrs 40,000 Hrs

* For optimal performance, use a trailing-edge, phase-cut dimmer.


LED MR-16 Ordering Information

Model

Power (W)

Power Consumption (Va)

Halogen Equivalent (W)

CCT

Beam Angle

Beam Description

Total Lumens (LM)

MAX. CANDELAS (cd)

CRI

Efficacy (lm/W)

MR16LED20WVN 4 4.3 20 2700K 10° Very Narrow 270 4,140 84+ 67
MR16LED20SVN 4 4.3 20 3000K 10° Very Narrow 285 4,360 84+ 74
MR16LED20CVN 4 4.3 20 4000K 10° Very Narrow 290 4,590 84+ 74

MR16LED20WFL 4 4.3 20 2700K 30° Flood 230 750 84+ 65

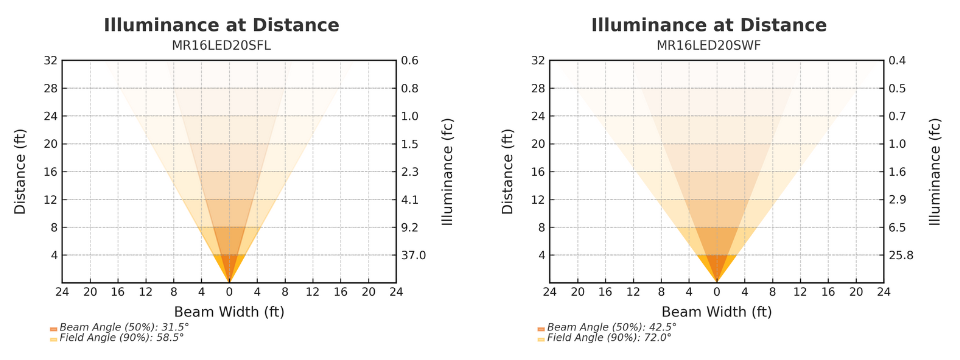

MR16LED20SFL 4 4.3 20 3000K 30° Flood 240 590 84+ 59
MR16LED20CFL 4 4.3 20 4000K 30° Flood 250 800 84+ 71

MR16LED20WWF 4 4.3 20 2700K 45° Wide Flood 230 395 84+ 64
MR16LED20SWF 4 4.3 20 3000K 45° Wide Flood 240 415 84+ 64
MR16LED20CWF 4 4.3 20 4000K 45° Wide Flood 250 490 84+ 70

MR16LED35WVN 5 5.4 35 2700K 15° Very Narrow 440 2,460 84+ 74
MR16LED35SVN 5 5.4 35 3000K 15° Very Narrow 460 2,590 84+ 101
MR16LED35CVN 5 5.4 35 4000K 15° Very Narrow 480 2,720 84+ 39

MR16LED35WFL 5 5.4 35 2700K 35° Flood 335 810 84+ 65
MR16LED35SFL 5 5.4 35 3000K 35° Flood 380 850 84+ 89
MR16LED35CFL 5 5.4 35 4000K 35° Flood 400 890 84+ 67

MR16LED35WWF 5 5.4 35 2700K 47° Wide Flood 340 450 84+ 71
MR16LED35SWF 5 5.4 35 3000K 47° Wide Flood 395 570 84+ 91
MR16LED35CWF 5 5.4 35 4000K 47° Wide Flood 415 600 84+ 69

MR16LED50WFL 6 6.5 50 2700K 35° Flood 480 1,025 84+ 95

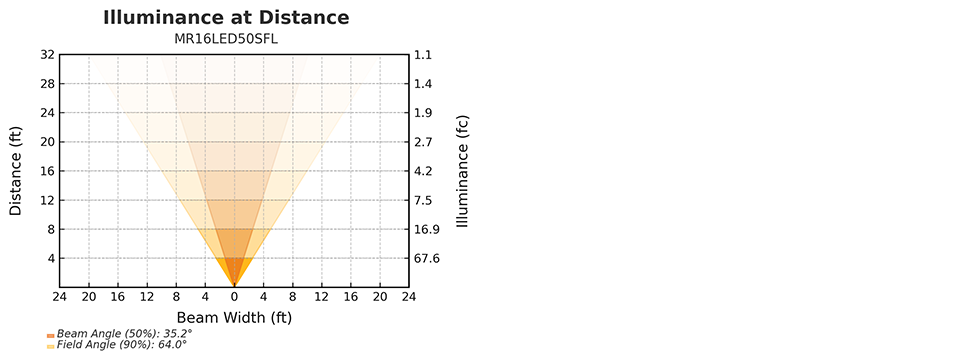

MR16LED50SFL 6 6.5 50 3000K 35° Flood 505 1,080 84+ 104
Accessories

Glare Control

  • Hex Baffle for MR-16 LED Lamps
    250015260000
  • RecessorRing® Spacer for MR-16 LED Lamps
    RR-MR16

Lenses/Filters

  • MR16 Linear Spread Lens
    250013550000
  • Frosted Lens for MR-16 LED Lamps
    250015170000
  • MR16 Solite Spread Lens
    250015240000
