Accessories - Hole Mounting Specs

Tabs

Read Article

The accessory specifications listed below provide exact hole locations for each of the mounting options.

NOTE: The accessory measurements below are in inches.

Find an authorized FX Luminaire distributor near you using our interactive Distributor Lookup.

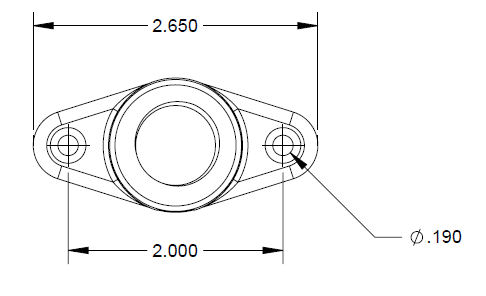

Mini-Mount

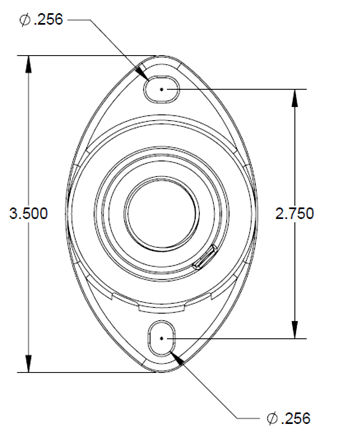

Mini J Box & Mini J Box TS

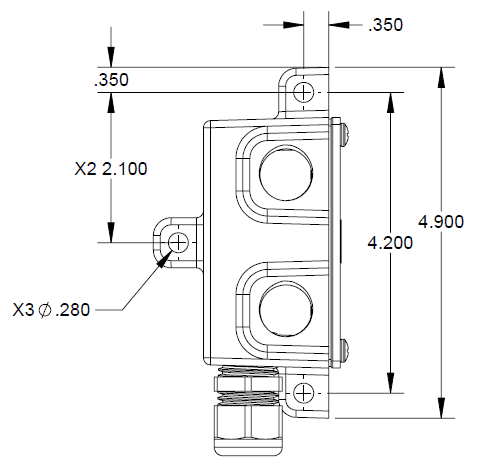

Treebox



Versa Box

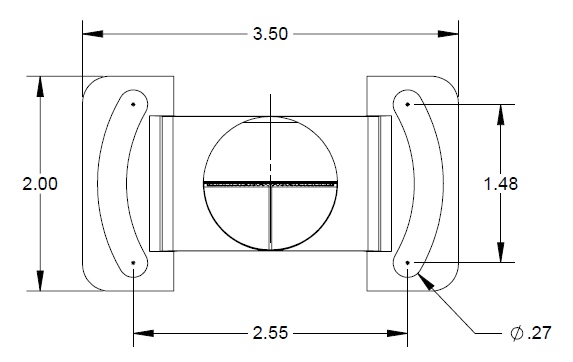

Wall Mount Knuckle

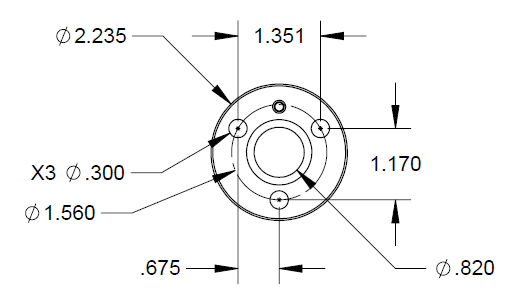

Deck Mount

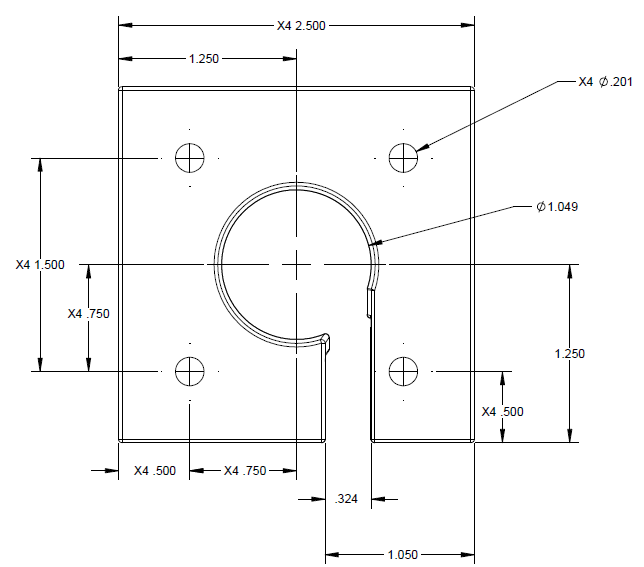

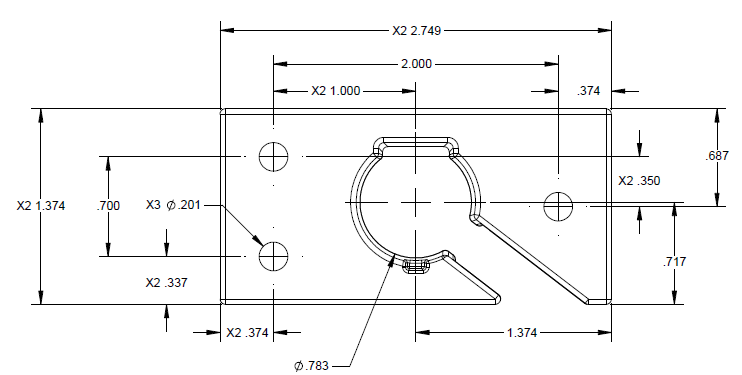

M-P Mounts

MPL-DM-XX

MPZ-DM-XX

MPJ-DM-XX

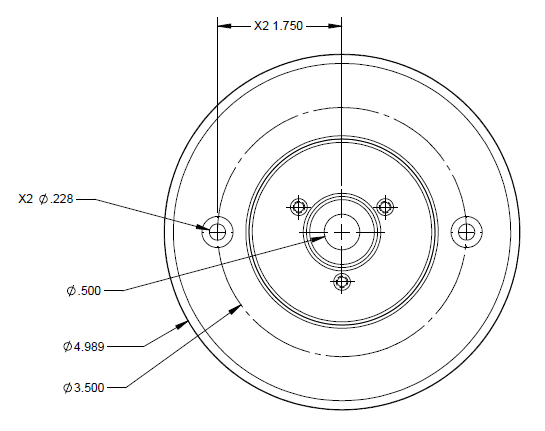

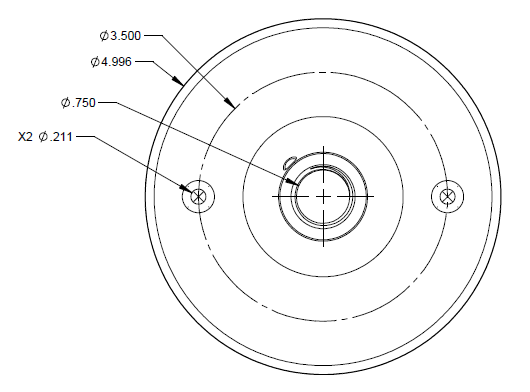

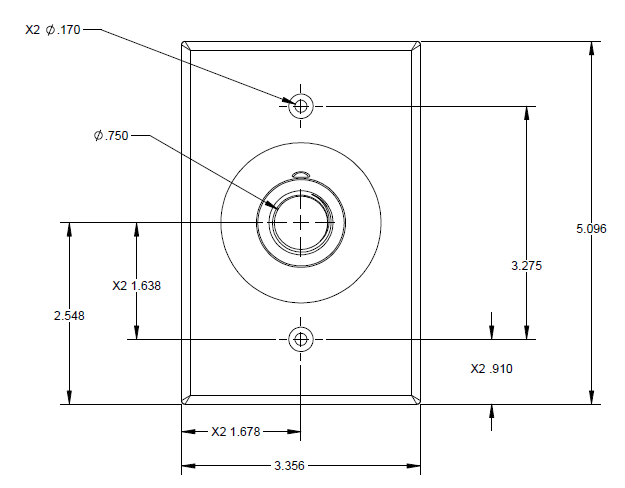

Wall Plate

WP-RD-050-XX

WP-RD-PS-XX

WP-1G-050-XX

WP-2G-NL-XX
