PX in use

PX

Lighting Transformer
Models 150, 300, 600, or 900 Watt

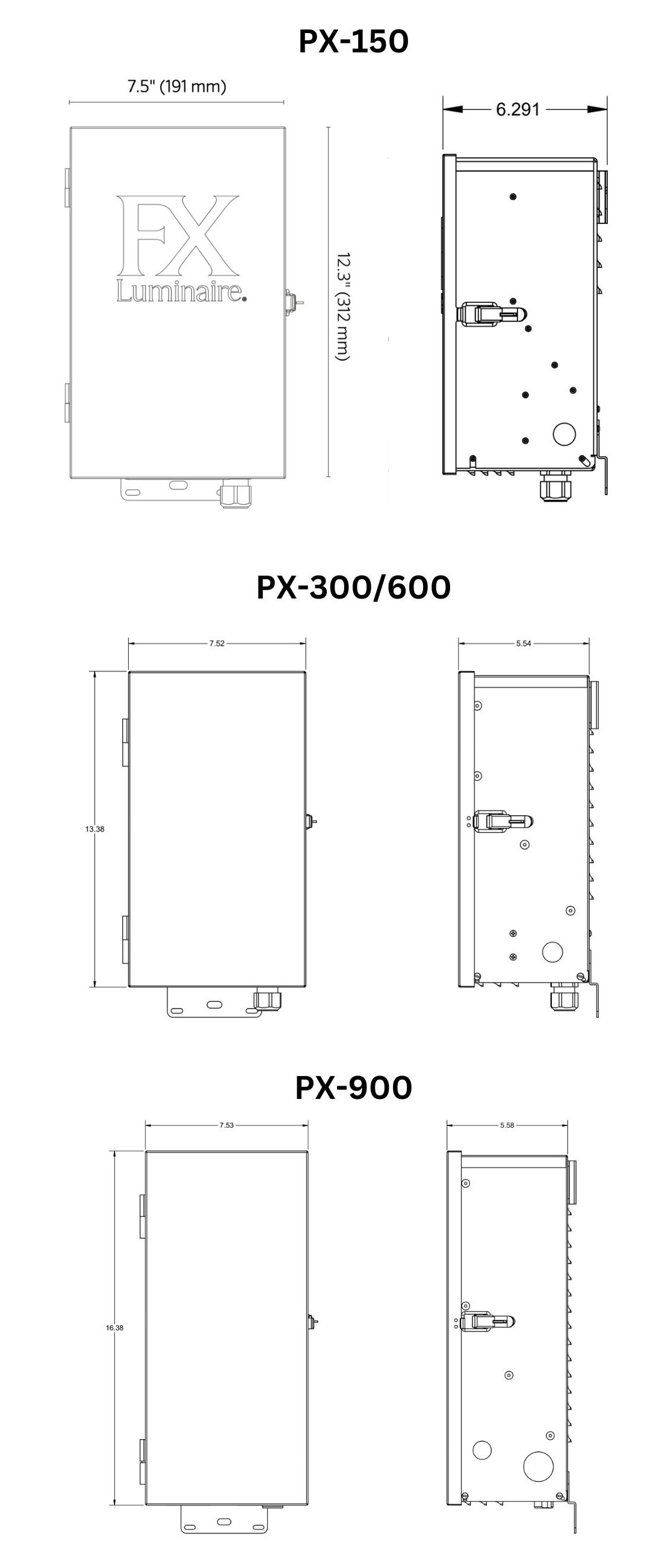

Material Stainless Steel
Depth 6.3" (160 mm)
Width 7.5" (191 mm)
Height 12.3" (312 mm)
Finishes

Overview

The commercial-grade, multi-tap PX is a high-quality transformer that offers optional on/off control options, such as a photocell or mechanical timer. This standard transformer is available in 150 W, 300 W, 600 W, and 900 W capacities for maximum design flexibility.

Quick Facts
  • Commercial-grade, 304 stainless steel construction ensures high-quality performance and long life
  • Large terminal block simplifies field wire and photocell installation
  • Multiple wattage options offer design flexibility
  • UL-379 rating provides added safety when installing near pools and spas
  • Various conduit knockout sizes and locations expand installation options
  • UL-1838 rating ensures safe lighting installations

Configure Product

Select from the options below to configure this product, then add it to your My List.

Wattage

150

150 Watts

300

300 Watts

600

600 Watts

900

900 Watts

Control

[Default]

Standard receptacle for various accessories using a Type A plug

PC

Photocell

T

Mechanical Timer

Compliance

[Default]

North America (UL Listed)

Finish

Stainless Steel

Stainless Steel (SS)

Product Configuration

Clear Selection
PX
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Power

PX Transformer photocell

PX-PC

Plug-in timer for PX Transformer and EX Transformer
Learn more

FX Luminaire Wi-Fi Plug

FX-WIFI-PLUG

Compact, IP66-rated plug delivers wireless control for low-voltage outdoor lighting transformers.
Learn more

Plug-in 24VAC relay

PX-SYNC

24VAC relay box - Control lighting transformer with Hunter irrigation controllers
Learn more

Lighting transformer plug-in timer

PX-TIMER

Plug-in timer - PX Transformer, EX Transformer
Learn more

Luxor Cube - Relay, 0-10V dimming

LCM-RLY010V

The relay and 0–10 V CUBE adds zoning and dimming capabilities to any product with a relay input or
Learn more
DIM-LV

Low-Voltage Dimmer

DIM-LV

The Low-Voltage Dimmer provides in-line dimming control for any low-voltage fixture. It’s the ideal
Learn more

Specifications

 Download Spec Sheet

Output PX-150 PX-300 PX-600 PX-900
Power 150 VA 300 VA 600 VA 900 VA
Input Primary 120 V, 60 Hz 120 V, 60 Hz 120 V, 60 Hz 120 V, 60 Hz
Input Amperage Primary 1.25 A 3 A 5 A 8 A
Output Voltage Secondary 12 or 15 VAC 11 to 15 VAC 11 to 15 VAC 11 to 15 VAC
Maximum Open Circuit Volts 15 VAC 15 VAC 15 VAC 15 VAC
Class 2 2 2 2
Additional Certifications

UL 1838,UL 379

Ambient Operating Temperature

Ambient Operating Temperature 0°F to 140°F (-18°C to 60°C)

Country of Origin

Made In India, Made In Mexico

Description
This reliable and easy-to-use transformer offers multiple power and control options for a variety of applications.
Environment

Outdoor

Finish Specification

Stainless steel

Hardware

Two pan-head, machined mounting screws with plastic anchors. Stainless steel mounting brackets are attached to the transformer box.

Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

Installation Requirements

Designed for installation on a vertical surface in the upright position only. Transformer must be in a free airspace. Do not install in a small, sealed enclosure or direct bury.

International Compliance

None

Ingress Protection (IP) Testing

IP43

Materials

304 stainless steel

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Warranty

10-year limited warranty

Weight

PX-150: 18 lb (8.2 kg); PX-300: 20 lb (9.1 kg); PX-600: 25 lb (11.3 kg); PX-900: 42 lb (19.1 kg)

Wiring

Heavy-gauge, grounded, water-resistant power cord with integrally molded plug; 5' (1.5 m) length. Standard low-voltage lighting wire required (e.g., 12-2, 10-2, etc./2.0 mm, 2.5 mm, etc.) between transformer and lighting fixtures.
