Pinnacle™ LP

Underwater Light
LEDs 1, 3, ZDC
Material Brass
Diameter 2.7" (69 mm)
Height 2.0" (51 mm)
Finishes

Overview

The LP is the smallest integrated LED underwater light by FX Luminaire. Designed for small spaces, the LP adds a unique architectural element to any water feature. Its natural brass construction ensures durability. With integrated Luxor® Technology, lead direction, and lead length options, the LP creates numerous possibilities for any project.

Quick Facts
  • Premium, corrosion-resistant brass construction protects internal and external elements of the fixture
  • Minimal visible hardware for a clean and elegant design, day or night
  • Horizontal or vertical cable entry locations
  • Serviceable with an IP68 rating
  • Driver on Board Technology layout for compact design and fewer components
  • Built-in Luxor® Technology enables powerline zoning, smooth dimming, and RGBW color-changing with the Luxor Controller
  • Available in static color temperature, wildlife-friendly, and dynamic RGBW color-changing options

Configure Product

Select from the options below to configure this product, then add it to your My List.

Lighting Engine

Which lighting engine is right for you?

Powerboard Integrated LED

Luxor Control

Which control is right for you?

ZDC

Zone/Dim/Color with Luxor (Medium Round 3 LED)

ZD

Zone/Dim with Luxor

Power

What does LED output mean?

1LED

2.4 VA

3LED

4.5 VA

[Default]

Default ZDC Option 6.0W/7.2VA

LED Color

Which color option is right for you?
Warm

[Default]

Warm (2700K)

Turtle icon

T

Wildlife-Friendly (585 to 595 nm)

Compliance

UL Listed

[Default]

North America (UL Listed)

CE Certified

E

International (CE Certified)

Configuration

HZ

Horizontal With Support Stand

VR

Vertical Lead

Wire Lead

30

30' (9 m) Lead

XL

100' (30 m) Lead

Finish

Natural Brass

Natural Brass (BS)

Product Configuration

Clear Selection

Included Parts & Accessories

  • Support Stand
Pinnacle™ LP
–
+

Accessories

Select Type

  • All Accessories
  • Recommended
  • Power
  • Mounting
  • Filters
  • Splicing
  • Glare
  • Lenses
  • Replacement Lamps
Replacement Lamps

Specifications

 Download Spec Sheet

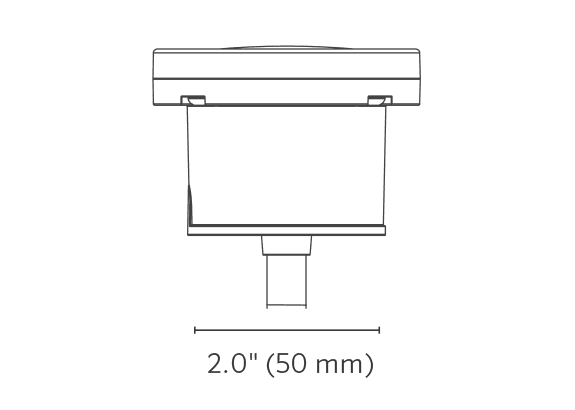

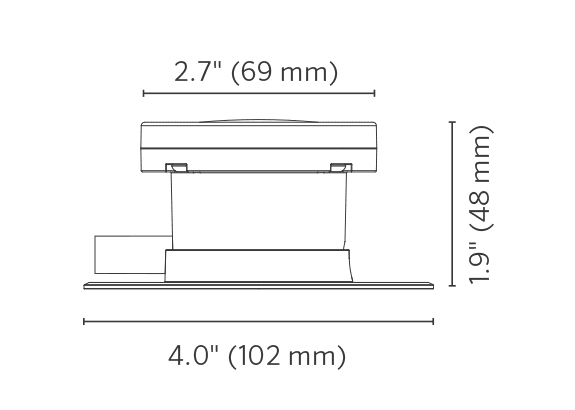

LP - Dimensions

Vertical Lead

Vertical Lead

Horizontal Lead

Horizontal Lead

Output1LED3LED3LEDTZDC
Total Lumens†75175120150-350
Input Voltage10 to 15V10 to 15V10 to 15V10 to 15V
Input Power (W)2.0 W4.2 W4.2 W6.0 W
VA2.24.54.57.2
Efficacy (Lumens/Watt)38413446
Color Rendering Index (CRI)80+80+--80+
Center Beam Candlepower3582251124
Dimming
Primary Dimming (Transformer)Consult transformer specifications
Secondary Dimming (Fixture)Phase-cut**Phase-cut**Phase-cut**Luxor
RGBW AvailableNoNoNoYes
Luxor Compatibility
DefaultZoningZoning--Zoning
ZD OptionZoning/DimmingZoning/DimmingZoning/Dimming--
ZDC Option------Zoning/Dimming/Color
Minimum Rated Life (L70)55,000 Hrs55,000 Hrs55,000 Hrs55,000 Hrs

** For optimal performance, use a trailing-edge, phase-cut dimmer.
† Measured using the 3,900K CCT lens. Multipliers for other CCTs include 0.80 (2,700K), 0.65 (4,500K), and 0.65 (5,200K)

Additional Certifications
Ambient Operating Temperature

0°F to 140°F (-18°C to 60°C)

Control Description

ZDC utilizes Luxor Technology to zone light fixtures in up to 250 groups and dim each group in 1% increments between 0% and 100%. Select the ZD option for zoning/dimming. Standard fixture is zoneable with ZDC.Standard fixture is zoneable with ZDC.

Country of Origin

Made In Mexico

CSA

CSA C22.2 No.89-1976

Description
Designed for small spaces, the LP is our smallest integrated LED underwater light. It features a natural brass construction to provide durability and long life.
EMC - CE

EN 55015,EN 61000-3-2,EN 61000-3-3,EN 61547

Environment

Wet

Faceplate Specification

Die-cast brass faceplate with flat face.

FCC

FCC CFR Part 15 Subpart B

Finish Specification

Natural brass finish.

Hardware

T15 Torx screws. Includes support stand.

Housing

Die-cast brass housing with capacity for 1 LED, 3 LED, or ZDC integrated LEDs.

HTS Code
Input Voltage Specification

10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)

International Compliance requirements

Compliant per IEC 60598-1 and IEC 60598-2-4 by selecting the "e" version in parts builder.

Ingress Protection (IP) Testing

IP67

ISED

ICES-005

Lamp Specification

Integrated module with Cree LEDs. Gold-plated connectors and conformal coated for maximum reliability and corrosion resistance. Proprietary onboard intelligent driver uses firmware-controlled temperature regulation, maximizing LED life. Field upgradable and replaceable, the LEDs are rated to 55,000 hrs. Maximum drive current: 1 A.

Lifetime Specification

L70 rating conforms to IES LM-80/TM-21 standards, projecting lumen maintenance to 70% of initial output.

Lighting Source

Powerboard™ Integrated LED

LVD - CE

EN 60598-1,EN60598-2-13

Materials

Die-cast C360 brass housing and cap with composite support stand.

Operating Temperature

50

Optics

Polycarbonate color temperature adjustment lenses included with fixture: 2,700K (preinstalled), 3,900K (no lens), 4,500K, and 5,200K. Color temperature lenses field serviceable.

Power Consumption Specification

Specified power consumption indicates the full apparent power.

Power Description

Input 10 - 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately).

Storage Temperature

60

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.

Weight

1

Wiring

Socket contains MoistureBlock™ Technology, preventing moisture from wicking up into sealed areas of the fixture.

Documents

Select Type

  • All Documents
  • Specifications
  • Installation
  • Marketing
  • Photometrics
  • Replacement Parts
  • Software
Document Name Actions
LP Designer - Install Note
Download
LP Installation Details - DWG
Download
LP Installation Details - PDF
Download

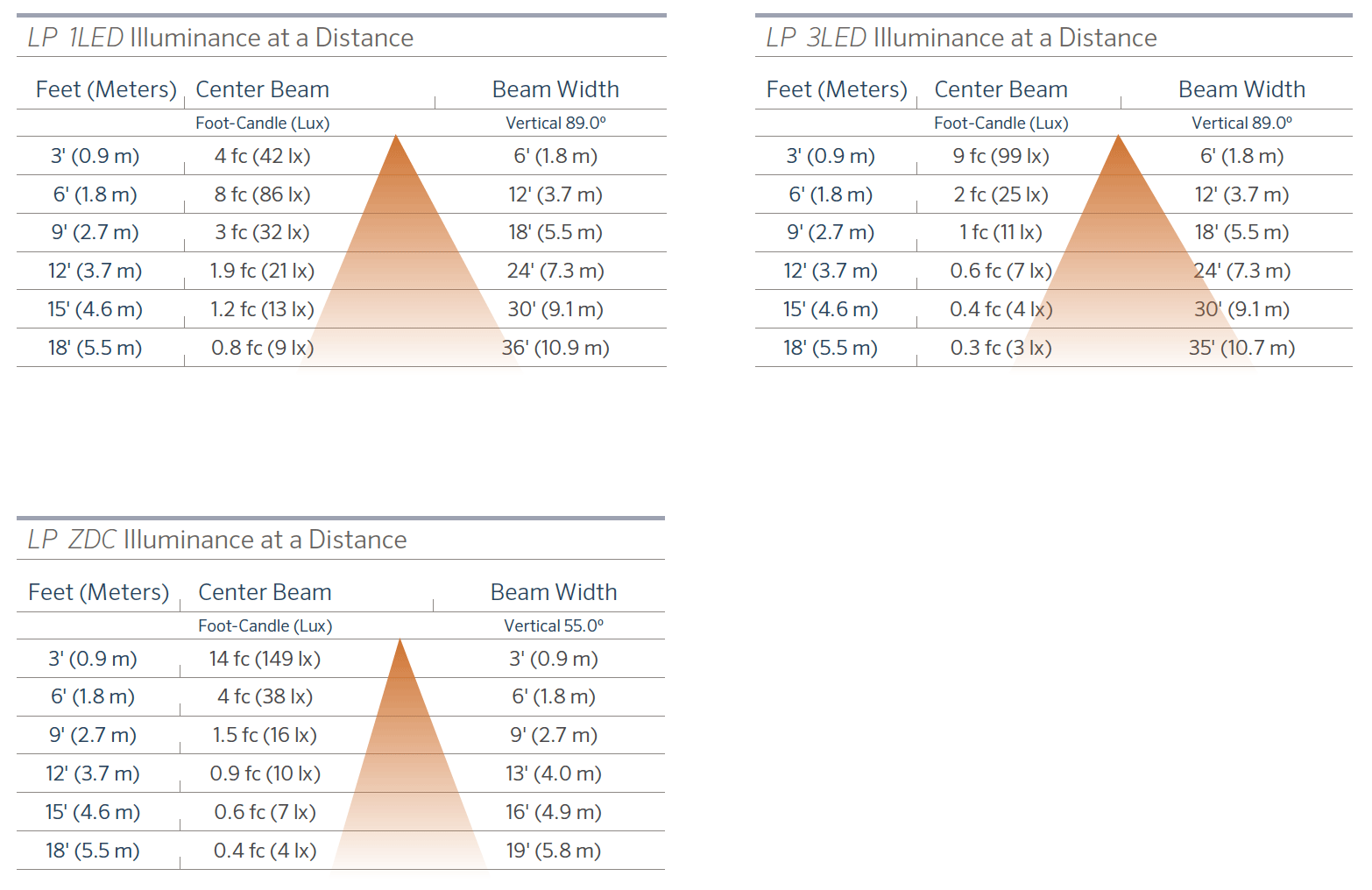

LP Photometrics
