Luxor

The catalog numbers below identify the LED board kits for each designer series light fixtures. For more information on ordering these kits,  please visit our interactive Distributor Lookup.

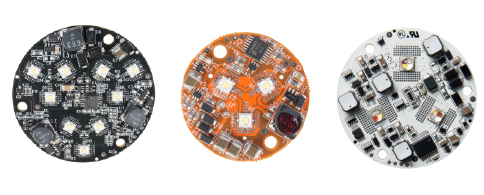

Color Board Description
Green Older style non-dimmable/zoning led board. No longer available.
Black The LED board kit includes the regular zoning LED board, reflector, screws, and four filters (clear, amber, green and blue).
Orange ZD kit includes the zoning and dimming LED board, reflector, screws, and four filters (clear, amber, green, and blue).
White ZDC kit includes the zoning, dimming, and color LED board, reflector, screws, and flood lens diffuser.

For information on changing the LED board, please visit one of the sections below:

Up Lights

Path Lights

Wall Lights

Down Lights

Underwater Lights

  • FAQ, Installation, Programming
ZD & ZDC LED Replacement Kits
Catalog No. Description
ZD1LEDULKIT ZD 1 LED Replacement Kit
ZD3LEDULKIT ZD 3 LED Replacement Kit
ZD6LEDULKIT ZD 6 LED Replacement Kit
ZD9LEDULKIT ZD 9 LED Replacement Kit
ZD3LEDTKIT ZD 3LED Wildlife Friendly Replacement Kit
ZDCKITM ZDC LED Replacement Kit, Medium
ZDCKITL ZDC LED Replacement Kit, Large
ZDCKITR ZDC LED Replacement Kit, Color Board for LF, SF, and M-PL Fixtures
755905 ZD 1 LED Warm (2,700 K) Board for LF, SF, and M-PL Fixtures, Horizontal Pins
755906 ZD 1 LED Cool (3,900 K) Board for LF, SF, and M-PL Fixtures, Horizontal Pins
ZDCKITR3 ZDC LED Replacement Kit, Rectangular 3 LED for HS Recessed Wall Light
LED Replacement Kits
Catalog No. Description
1LEDULKIT 1 LED Replacement Kit
3LEDULKIT 3 LED Replacement Kit
6LEDULKIT 6 LED Replacement Kit
9LEDULKIT 9 LED Replacement Kit
755902 1 LED Board for LF Ledge Light, Vertical Pins
755903 1 LED Warm (2,700 K) Board for LF, SF, and M-PL Fixtures, Horizontal Pins
755904 1 LED Cool (3,900 K) Board for LF, SF, and M-PL Fixtures, Horizontal Pins
2LEDWKITR 2 LED Replacement Kit (Warm) for HS Recessed Wall Light
2LEDCKITR 2 LED Replacement Kit (Cool) for HS Recessed Wall Light
