Junction Box Installation Details



Indoor-Rated Box

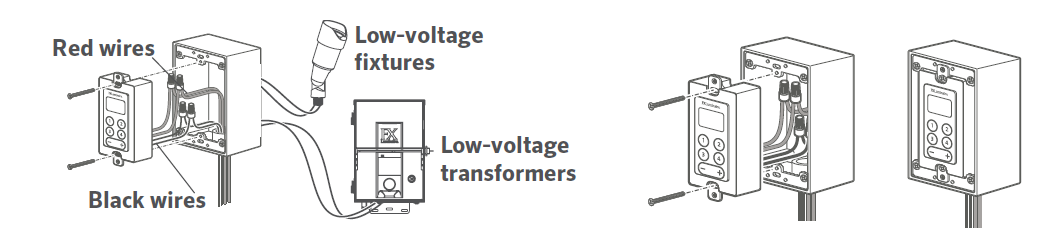

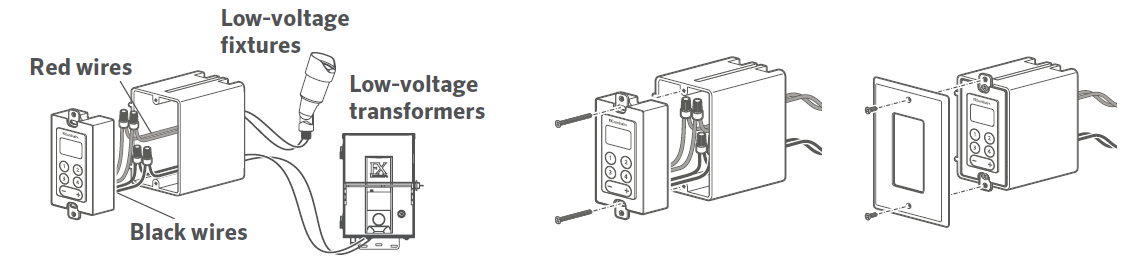

  1. Connect field wires from transformer to dimmer wires (black). Connect fixture wires to dimmer wires (red).
  2. Install dimmer inside the junction box.
  3. Install the faceplate (not included).

Metal Outdoor-Rated Box

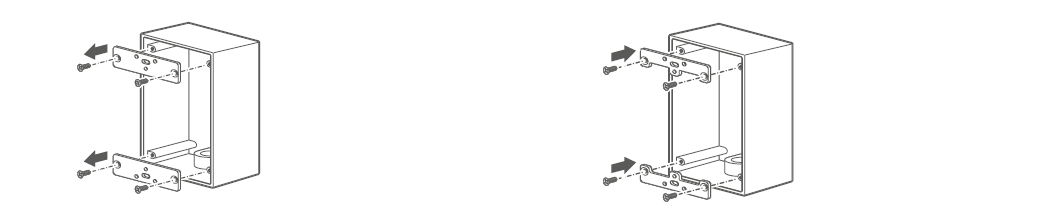

  1. Remove existing brackets at the top and bottom of the junction box.
  2. Install the included brackets into the junction box. Make sure that the brackets are oriented as shown.
  3. Connect field wires from transformer to dimmer wires (black). Connect fixture wires to dimmer wires (red).
  4. Install dimmer inside the junction box.

Junction Box Compatibility Chart
Junction Box Compatible Description
Yes

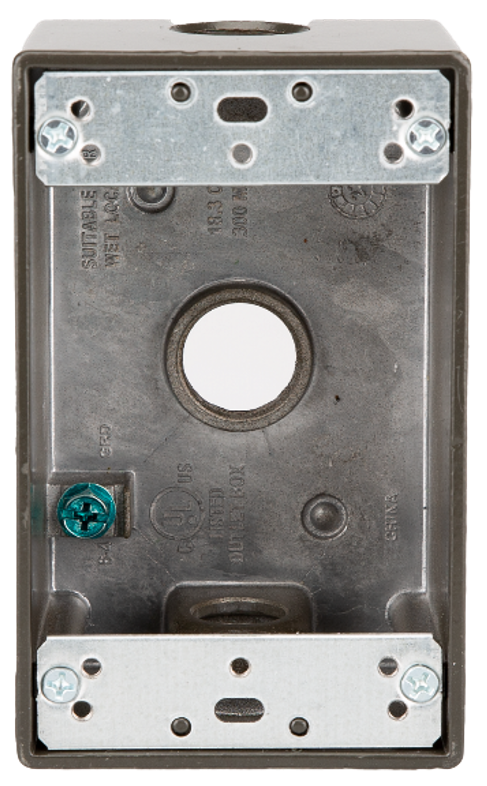

The metal brackets are removable to allow the included hardware to fit correctly.

(Preferred Box) Learn More

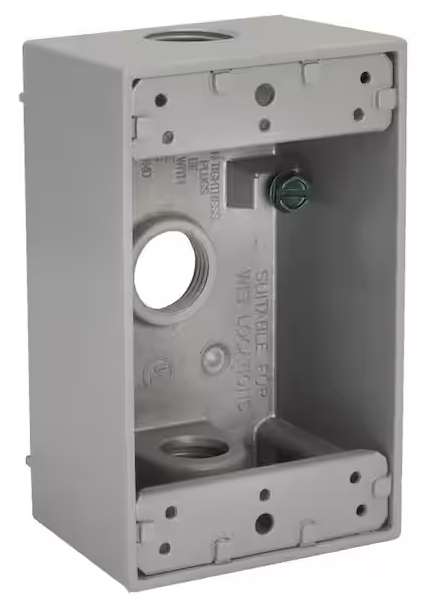

No The welded brackets do not allow our included hardware to fit correctly.

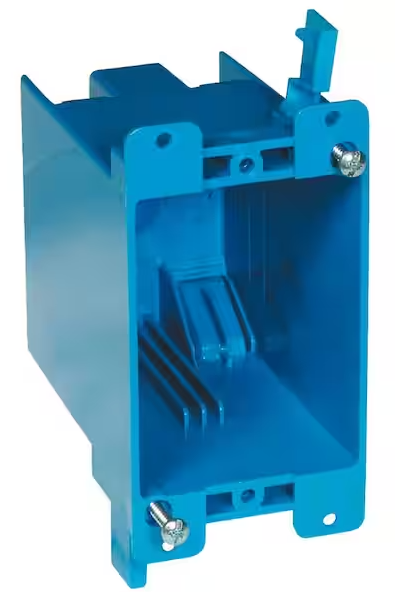

No The plastic mold does not allow the DIM-LV to fit correctly.

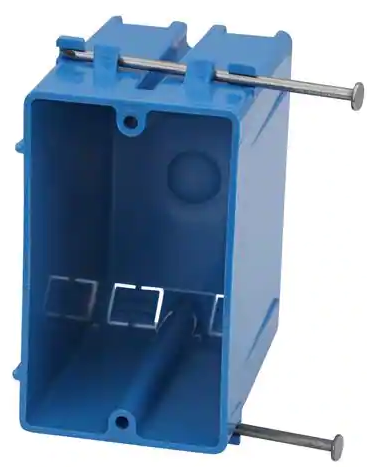

Yes The plastic pre-construction box allows the DIM-LV to fit with no customization.

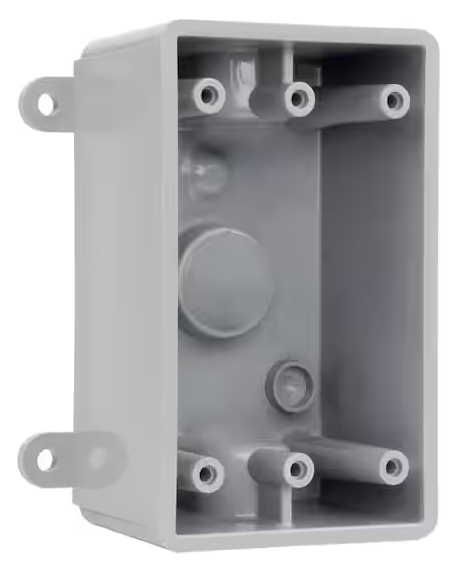

No The plastic drywall construction box will not allow the DIM-LV to fit correctly with any customization.
